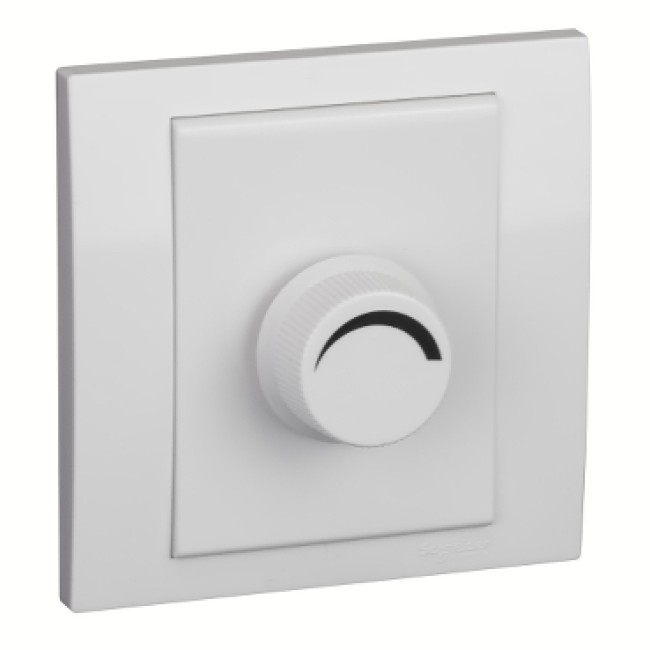

Schneider Vivace Wall Plate, 1 Gang Dimmer Push Button Rotary, Trailing Edge, 250W, 240V - KB31RD250T_WE_G11
Model :KB31RD250T_WE_G11
SKU :
Free Delivery
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Vivace Wall Plate, 1 Gang Dimmer Push Button Rotary, Trailing Edge, 250W, 240V - KB31RD250T_WE_G11
The Schneider Vivace Wall Plate Dimmer (KB31RD250T_WE_G11) offers precise control of your lighting with its 1 gang dimmer push button rotary design. This trailing edge dimmer supports up to 250W at 240V, providing smooth and flicker-free dimming for a wide range of lighting types. The sleek white finish of the Vivace series enhances any décor, combining functionality with modern style to create the perfect ambiance in any room.
Specifications
Vivace Dimmer Specifications
| Main | |
|---|---|
| Range | Vivace |
| Range of product | Vivace |
| Product or component type | Dimmer |
| Device application | Light control |
| Device presentation | Complete product |
| Colour | White |
| Quantity per set | 1 |
| Complementary | |
| Device mounting | Surface |
| Fixing mode | By 2 screws |
| Dimmer type | Rotary dimmer |
| Dimmer application | Resistive load |
| Dimmer additional information | 2-wire connection |
| Dimmer control | ON/OFF push, level by turning knob |
| Control type | Rotary knob light control dimming up/down control |
| Switch function | 1-pole 2-way push-button |
| Function available | Light control |
| Product destination | Flush mounted box |
| Load type | 2 x 240 V AC incandescent lamp, electronic ballast: 250 W Halogen lamp: 250 W LED lamp: 100 W Low voltage halogen lamp with electronic transformer, electronic ballast |
| [Ue] rated operational voltage | 220...240 V AC 50 Hz |
| Rated current/voltage | 10 A at 240 V AC |
| Maximum permanent current | 10 A |
| Protection type | Electronic short-circuit and automatic overload protection |
| Wiring configuration | 2 wires |
| Connections - terminals | Screw terminals |
| Wire stripping length | 10 mm |
| Number of loop terminals | 1 |
| Shape of screw head | Slotted |
| Clamping connection capacity | 1 x 2.5 mm² for rigid or stranded cable(s) 2 x 1.5 mm² for rigid or stranded cable(s) |
| Material | Polycarbonate: cover, grid plate |
| Surface finish | Glossy |
| Type of packing | Plastic bag |
| Number of gangs | 1 gang |
| Number of modules | 1 module |
| Embedding depth | 20 mm |
| Height | 87 mm |
| Width | 87 mm |
| Depth | 37 mm |
| Projecting depth | 17 mm |
| Environment | |
| Ambient air temperature for operation | -5…35 °C |
| Ambient air temperature for storage | 0…60 °C |
| Relative humidity | 5…95 % |
| Standards | IEC 60669-1, 1998-Ed.3 + A1, 1999 IEC 60669-2-1, 2002-Ed.4 |
| Product certifications | SIRIM |
| IP degree of protection | IP20 indoor |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 80 g |
