Schneider Unica Switched Socket, 2P E European, 13A, 250V, White - MGU5.049.18
Model :MGU5.049.18
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Unica Switched Socket, 2P E European, 13A, 250V, White - MGU5.049.18

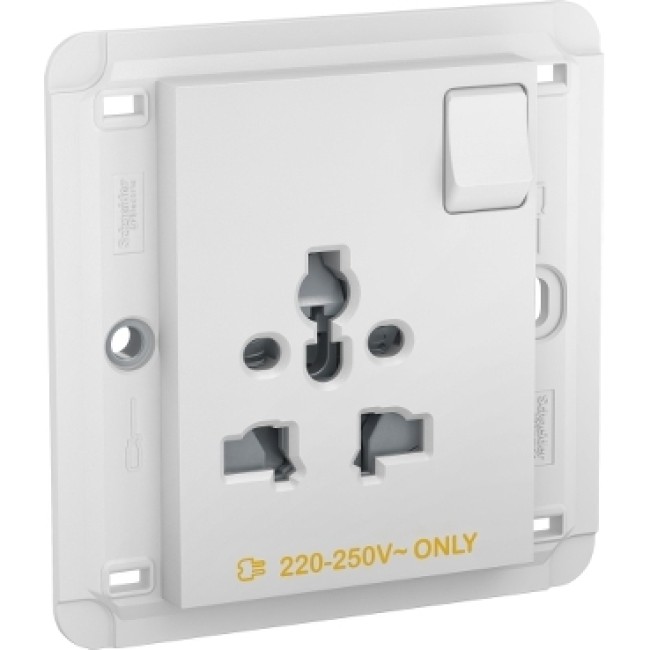

The Schneider Unica Switched Socket (MGU5.049.18) offers a reliable and stylish solution for electrical connections. Designed with a 2P+E European configuration, this socket supports a 13A, 250V load, making it suitable for various household and commercial applications. The sleek white finish complements modern interiors, while the integrated switch adds convenience by allowing users to control power to the socket without unplugging devices. Its robust construction ensures long-lasting performance and safety.
Specifications
| Category | Specification |
|---|---|
| Main | |
| Range of product | Unica |
| Device application | Power supply |
| Product or component type | Switched socket |
| Device presentation | Mechanism with fixing frame |
| Outlet poles configuration | 2P + E |
| Outlet standard deviation | Universal |
| Complementary | |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| Socket number | 1 |
| Pilot light | Red neon indicator |
| Rated current | 13 A |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50 Hz |
| Load type | No inductive load |
| Number of modules | 2 modules |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Colour tint | White (RAL 9003) |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Pillar terminal |
| Terminal identifier | L, N, Earth |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity |
2 x 4 mm² for rigid cable(s) 2 x 4 mm² for stranded cable(s) 2 x 4 mm² for flexible cable(s) 3 x 2.5 mm² for rigid cable(s) 3 x 2.5 mm² for stranded cable(s) 3 x 2.5 mm² for flexible cable(s) |
| Material |
PC (polycarbonate): grid plate PA66: base |
| Projecting depth | 8 mm |
| Quantity per set | Set of 5 |
| Type of packing | Polybag |
| Embedding depth | 35 mm |
| Depth | 15 mm |
| Width | 81 mm |
| Height | 83 mm |
| Net weight | 0.074 kg |
| Environment | |
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Environmental characteristic | Indoor use |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.8 cm |
| Package 1 Width | 11.7 cm |
| Package 1 Length | 16 cm |
| Package 1 Weight | 74 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 80 |
| Package 2 Height | 210 cm |
| Package 2 Width | 315 cm |
| Package 2 Length | 500 cm |
| Package 2 Weight | 7980 g |
| Unit Type of Package 3 | PAM |
| Number of Units in Package 3 | --- |
| Package 3 Height | 120 cm |
