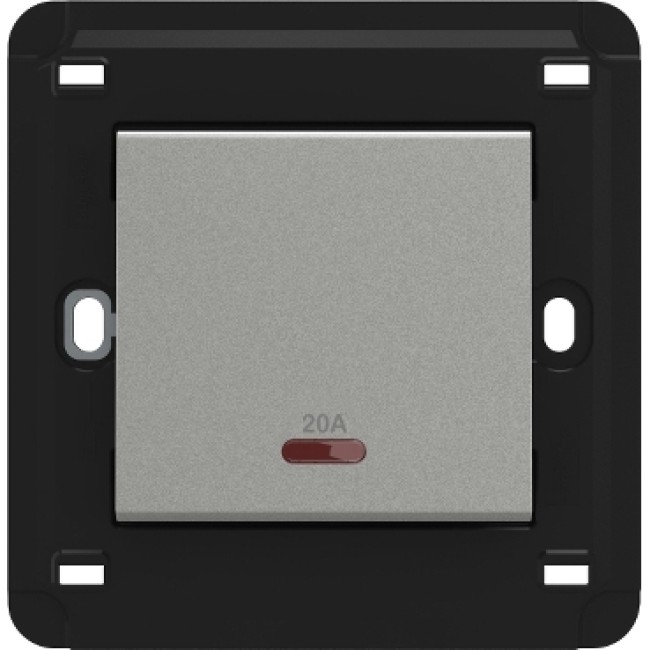

Schneider Unica Switch with Neon Lamp, 2-Pole 1-Way, 20A, 250V AC, 1 Gang, Aluminium - MGU5.222.30S
Model :MGU5.222.30S
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Unica Switch with Neon Lamp, 2-Pole 1-Way, 20A, 250V AC, 1 Gang, Aluminium - MGU5.222.30S
The Schneider Unica Switch with Neon Lamp (MGU5.222.30S) combines functionality and modern design. Featuring a 2-pole 1-way configuration, this switch supports a 20A, 250V AC load, making it suitable for high-power applications. The integrated neon lamp provides a clear visual indicator when the switch is in the ON position, enhancing user convenience and safety. The sleek aluminium finish adds a contemporary touch to any interior, while its robust construction ensures durability and reliable performance.
Specifications
| Category | Specification |
|---|---|
| Main | |
| Range of product | Unica |
| Device application | Control |
| Product or component type | Switch |
| Device presentation | Mechanism with fixing frame |
| Colour tint | Aluminium |
| Complementary | |
| Switch function | 2-pole 1-way |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing center | 60.3 mm |
| Rated current | 20 A at 250 V AC, inductive |
| Network frequency | 50 Hz |
| Contacts material | Brass and phosphor bronze |
| Actuator | Rocker |
| Number of gangs | 1 gang |
| Fixing mode | By screw M3.5 |
| Pilot light | Neon indicator lamp |
| Connections - terminals | Pillar terminal |
| Terminal identifier | L2, N2, L1, N1 |
| Cable cross section | 4 mm² rigid cable 4 mm² stranded cable 4 mm² flexible cable |
| Tightening torque | 0.4 N.m |
| Material |
PC + ASA: rocker Polycarbonate: cover frame PA (polyamide) 6.6: base |
| Embedding depth | 35 mm |
| Width | 81 mm |
| Height | 83 mm |
| Net weight | 0.062 kg |
| Environment | |
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Standards | IEC 60669-1 BS 7671 |
| Environmental characteristic | Indoor use |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.1 cm |
| Package 1 Width | 11.7 cm |
| Package 1 Length | 16.0 cm |
| Package 1 Weight | 54.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15.0 cm |
| Package 2 Length | 19.0 cm |
| Package 2 Weight | 680.0 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 2000 |
| Package 3 Height | 80.0 cm |
| Package 3 Width | 100.0 cm |
| Package 3 Length | 120.0 cm |
| Package 3 Weight | 167.0 kg |
