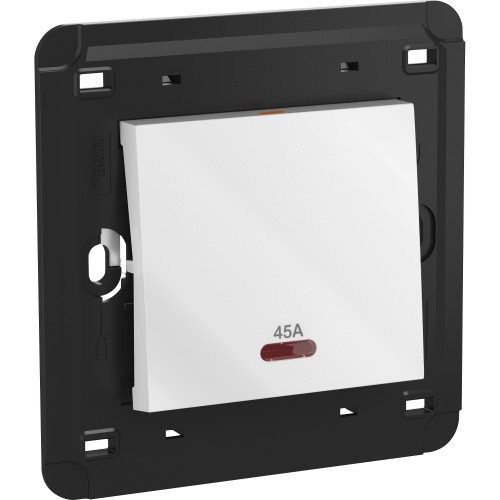

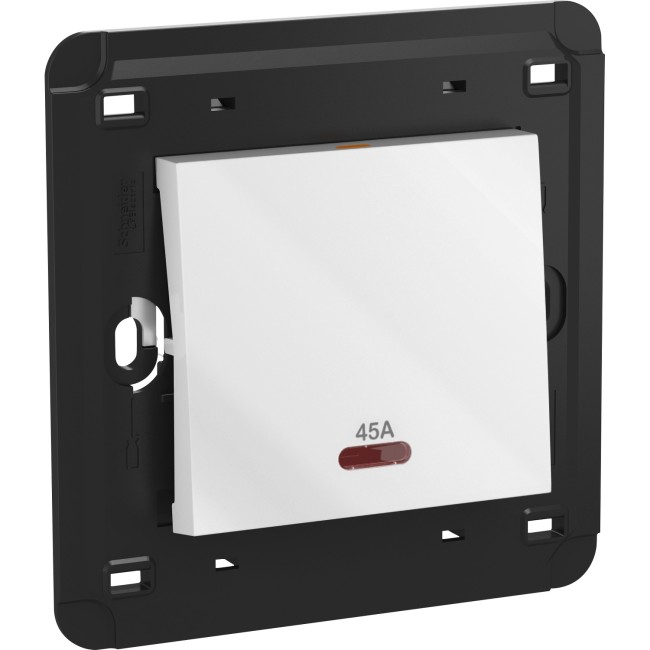

Schneider Unica - switch + neon lamp - 2-pole 1-way - 45 A 250 V AC - 2 gangs - white MGU5.252.18
Model :MGU5.252.18
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Unica - switch + neon lamp - 2-pole 1-way - 45 A 250 V AC - 2 gangs - white MGU5.252.18
Specifications
| Range of product | Unica |
|---|---|
| Device application | Control |
| Product or component type | Switch |
| Device presentation | Mechanism with fixing frame |
| Colour tint | White |
| Switch function | 2-pole 1-way |
|---|---|
| Device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing center | 60.3 mm |
| Rated current | 45 A at 250 V AC, inductive 45 A at 250 V AC, resistive |
| Network frequency | 50 Hz |
| Contacts material | Brass and phosphor bronze |
| Actuator | Rocker |
| Number of gangs | 2 gangs |
| Fixing mode | By screw M3.5 |
| Pilot light | Neon indicator lamp |
| Connections - terminals | Pillar terminal |
| Terminal identifier | N1 L2 L1 N2 |
| Cable cross section | 16 mm² rigid cable 16 mm² stranded cable 16 mm² flexible cable |
| Tightening torque | 0.4 N.m |
| Material | Polycarbonate: base PC + ASA: rocker Polycarbonate: cover frame |
| Embedding depth | 47 mm |
| Width | 81 mm |
| Height | 83 mm |
| Net weight | 0.091 kg |
| Ambient air temperature for operation | -5…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Standards | IEC 60669-1 BS 7671 |
| Environmental characteristic | Indoor use |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.4 cm |
| Package 1 Width | 11.7 cm |
| Package 1 Length | 16.0 cm |
| Package 1 Weight | 89.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15.0 cm |
| Package 2 Length | 19.0 cm |
| Package 2 Weight | 900.0 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 2000 |
| Package 3 Height | 80.0 cm |
| Package 3 Width | 100.0 cm |
| Package 3 Length | 120.0 cm |
| Package 3 Weight | 189000.0 g |
