Schneider Unica 2-Way Switch, 16AX, 250V AC, 2 Gangs, White - MGU5.242.18
Model :MGU5.242.18
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Unica 2-Way Switch, 16AX, 250V AC, 2 Gangs, White - MGU5.242.18

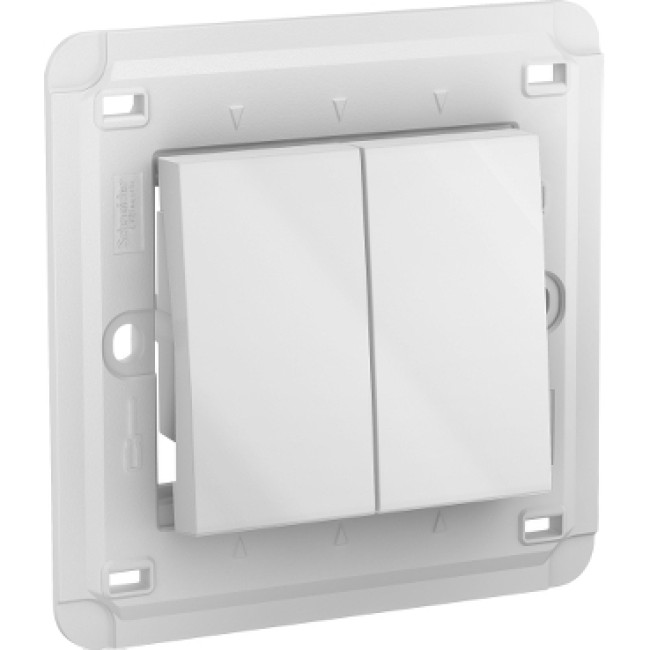

The Schneider Unica 2-Way Switch (MGU5.242.18) provides a reliable and stylish solution for controlling lighting from multiple locations. With a 16AX rating and 250V AC capacity, this switch is suitable for a range of residential and commercial applications. The 2-gang design allows for control of two separate circuits or multiple control points for a single circuit. The clean white finish blends seamlessly with modern interiors, while its durable construction ensures long-term performance and ease of use.
Specifications
| Category | Specification |
|---|---|
| Main | |
| Range of product | Unica |
| Device application | Control |
| Product or component type | Switch |
| Device presentation | Mechanism with fixing frame |
| Colour tint | White |
| Complementary | |
| Switch function | 2-way |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing center | 60.3 mm |
| Rated current | 16 AX at 250 V AC, inductive 16 AX at 250 V AC, fluorescent |
| Load type | Load for energy saving lamps with ballast: 200 W |
| Network frequency | 50 Hz |
| Contacts material | Brass and phosphor bronze |
| Actuator | Rocker |
| Number of gangs | 2 gangs |
| Fixing mode | By screw M3.5 |
| Connections - terminals | Pillar terminal |
| Terminal identifier | L1, COM, L2 |
| Cable cross section | 2.5 mm² rigid cable 2.5 mm² stranded cable 2.5 mm² flexible cable |
| Tightening torque | 0.4 N.m |
| Material |
PC + ASA: rocker Polycarbonate: cover frame PA (polyamide) 6.6: base |
| Embedding depth | 35 mm |
| Width | 81 mm |
| Height | 83 mm |
| Net weight | 0.051 kg |
| Environment | |
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Standards | IEC 60669-1 BS 7671 |
| Environmental characteristic | Indoor use |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.2 cm |
| Package 1 Width | 11.7 cm |
| Package 1 Length | 16 cm |
| Package 1 Weight | 47 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 426 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 1600 |
| Package 3 Height | 120 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 121.2 kg |
