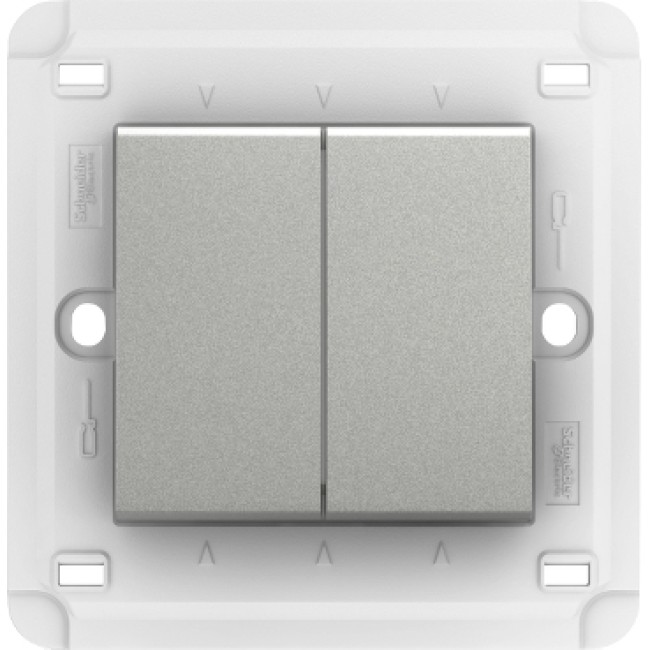

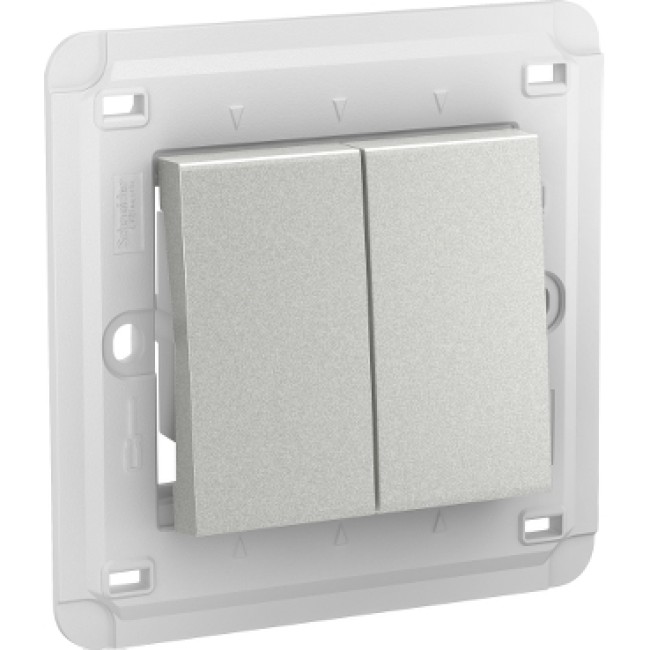

Schneider Unica 2-Way Switch, 16AX, 250V AC, 2 Gangs, Aluminium MGU5.242.30
Model :MGU5.242.30
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Unica 2-Way Switch, 16AX, 250V AC, 2 Gangs, Aluminium MGU5.242.30
The Schneider Unica 2-Way Switch (MGU5.242.30) combines modern design with reliable performance for efficient lighting control. Rated at 16AX with 250V AC, this 2-gang switch allows for easy operation of two separate lighting circuits or multiple control points for a single circuit. The elegant aluminium finish enhances the aesthetics of any contemporary space, making it an ideal choice for both residential and commercial environments. Built for durability and smooth functionality, this switch ensures long-term reliability.
Specifications
Product Specifications
| Main | |
|---|---|
| Range of product | Unica |
| Device application | Control |
| Product or component type | Switch |
| Device presentation | Mechanism with fixing frame |
| Colour tint | Aluminium |
| Complementary | |
| Switch function | 2-way |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing center | 60.3 mm |
| Rated current | 16 AX at 250 V AC, inductive 16 AX at 250 V AC, fluorescent |
| Load type | Load for energy saving lamps with ballast: 200 W |
| Network frequency | 50 Hz |
| Contacts material | Brass and phosphor bronze |
| Actuator | Rocker |
| Number of gangs | 2 gangs |
| Fixing mode | By screw M3.5 |
| Connections - terminals | Pillar terminal |
| Terminal identifier | L2, COM, L1 |
| Cable cross section | 2.5 mm² rigid cable 2.5 mm² stranded cable 2.5 mm² flexible cable |
| Tightening torque | 0.4 N.m |
| Material | PC + ASA: rocker Polycarbonate: cover frame PA (polyamide) 6.6: base |
| Projecting depth | 8 mm |
| Embedding depth | 35 mm |
| Width | 81 mm |
| Height | 83 mm |
| Net weight | 0.051 kg |
| Environment | |
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Standards | IEC 60669-1 BS 7671 |
| Environmental characteristic | Indoor use |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.2 cm |
| Package 1 Width | 11.7 cm |
| Package 1 Length | 16 cm |
| Package 1 Weight | 47 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 426 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 1600 |
| Package 3 Height | 120 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 121200 g |
