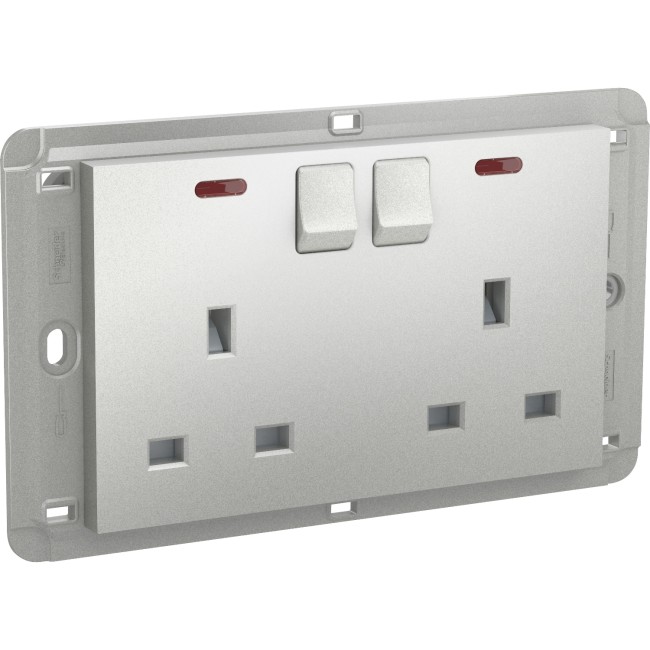

Schneider Unica - 2 switched socket - 2P+E European - 13 A 250 V AC - aluminium MGU5.066.30
Model :MGU5.066.30
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Unica - 2 switched socket - 2P+E European - 13 A 250 V AC - aluminium MGU5.066.30
Specifications
| Range of product | Unica |
|---|---|
| Device application | Power supply |
| Product or component type | Switched socket |
| Device presentation | Mechanism with fixing frame |
| Outlet poles configuration | 2P + E |
| outlet standard | European |
| Device mounting | Flush |
|---|---|
| Mounting support | Wall mounted |
| Socket number | 2 |
| Pilot light | Red neon indicator |
| Rated current | 13 A |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50 Hz |
| Load type | Resistive |
| Number of modules | 4 modules |
| Fixing mode | By screw M3.5 |
| Fixing center | 120.6 mm |
| Colour tint | Aluminium |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Pillar terminal |
| Terminal identifier | N Earth L |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | 2 x 4 mm² for rigid cable(s) 2 x 4 mm² for stranded cable(s) 2 x 4 mm² for flexible cable(s) 3 x 2.5 mm² for rigid cable(s) 3 x 2.5 mm² for stranded cable(s) 3 x 2.5 mm² for flexible cable(s) |
| Material | PC (polycarbonate): grid plate PC (polycarbonate): base |
| Projecting depth | 8 mm |
| Quantity per set | Set of 10 |
| Type of packing | Polybag |
| Embedding depth | 35 mm |
| Depth | 15 mm |
| Width | 140 mm |
| Height | 83 mm |
| Net weight | 0.12 kg |
| Ambient air temperature for operation | -5…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Standards | BS 1363 BS 7671 SASO 2203 |
| Environmental characteristic | Indoor use |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.8 cm |
| Package 1 Width | 11.7 cm |
| Package 1 Length | 22.3 cm |
| Package 1 Weight | 119 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 625 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 1000 |
| Package 3 Height | 120 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 157000 g |
