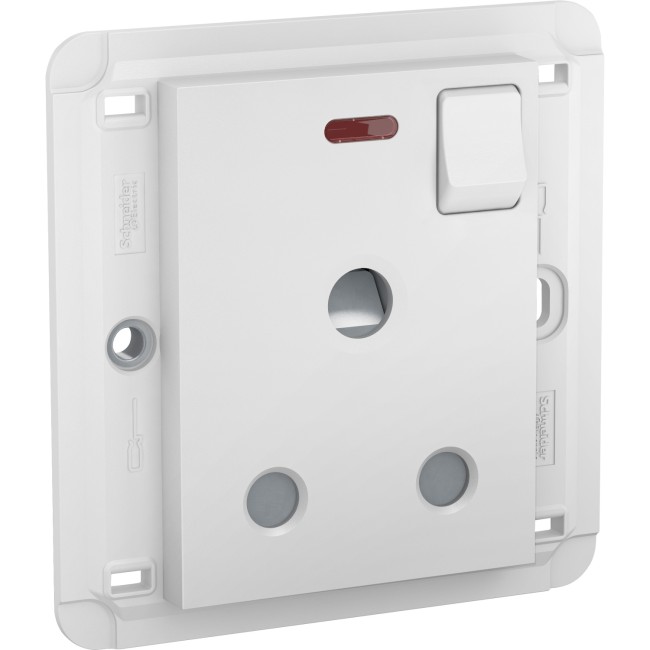

Schneider Unica - 1 gang socket-outlet with switch - 2x2P+E European - 15 A 250 V AC - whi MGU5.018.18
Model :MGU5.018.18
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Unica - 1 gang socket-outlet with switch - 2x2P+E European - 15 A 250 V AC - whi MGU5.018.18
Specifications
| Range of product | Unica |
|---|---|
| Device application | Power supply |
| Product or component type | Switched socket |
| Device presentation | Mechanism with fixing frame |
| Outlet poles configuration | 2P + E |
| outlet standard | European |
| Device mounting | Flush |
|---|---|
| Mounting support | Wall mounted |
| Socket number | 1 |
| Pilot light | Red neon indicator |
| Rated current | 15 A |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50 Hz |
| Load type | Resistive |
| Number of modules | 2 modules |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Colour tint | White (RAL 9003) |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Pillar terminal |
| Terminal identifier | L N Earth |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | 2.5 mm² for rigid cable(s) 2.5 mm² for stranded cable(s) 2.5 mm² for flexible cable(s) |
| Material | PC (polycarbonate): grid plate PC (polycarbonate): base |
| Projecting depth | 8 mm |
| Quantity per set | Set of 5 |
| Type of packing | Polybag |
| Embedding depth | 35 mm |
| Depth | 15 mm |
| Width | 81 mm |
| Height | 83 mm |
| Net weight | 0.073 kg |
| Ambient air temperature for operation | -5…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Standards | BS 546 BS 7671 |
| Environmental characteristic | Indoor use |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.2 cm |
| Package 1 Width | 11.7 cm |
| Package 1 Length | 16 cm |
| Package 1 Weight | 73 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 644 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 1600 |
| Package 3 Height | 120 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 195800 g |
