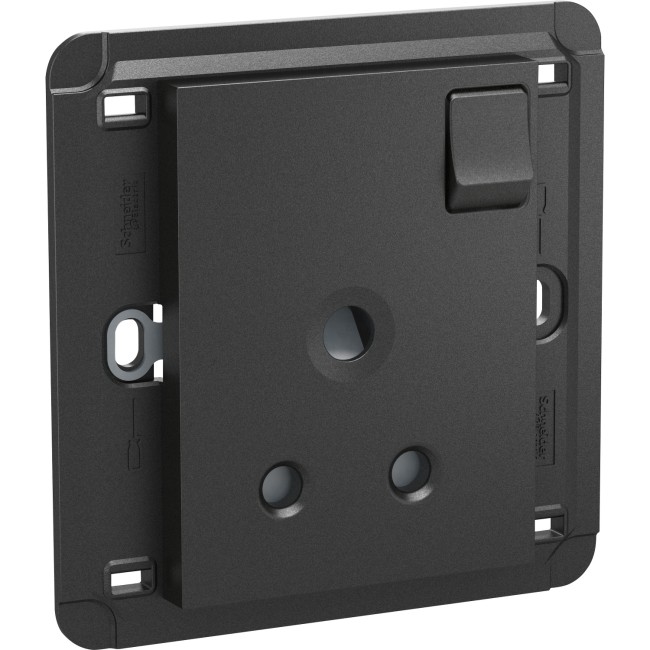

Schneider Unica - 1 gang socket-outlet with switch - 2P E European - 5 A 250 V AC - graphi MGU5.017.12
Model :MGU5.017.12
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Unica - 1 gang socket-outlet with switch - 2P E European - 5 A 250 V AC - graphi MGU5.017.12
Specifications
| Range of product | Unica |
|---|---|
| Device application | Power supply |
| Product or component type | Switched socket |
| Device presentation | Mechanism with fixing frame |
| Outlet poles configuration | 2P + E |
| outlet standard | European |
| Device mounting | Flush |
|---|---|
| Mounting support | Wall mounted |
| Socket number | 1 |
| Rated current | 5 A |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50 Hz |
| Load type | Resistive Inductive |
| Number of modules | 2 modules |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Colour tint | Graphite |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Pillar terminal |
| Terminal identifier | Earth N L |
| tightening torque | 0.4 N.m |
| Clamping connection capacity | <= 1.5 mm² for rigid cable(s) <= 1.5 mm² for stranded cable(s) <= 1.5 mm² for flexible cable(s) |
| Material | PC (polycarbonate): grid plate PP (polypropylene): base |
| Projecting depth | 8 mm |
| Quantity per set | Set of 5 |
| Type of packing | Polybag |
| Embedding depth | 35 mm |
| Depth | 15 mm |
| Width | 81 mm |
| Height | 83 mm |
| Net weight | 0.05 kg |
| Ambient air temperature for operation | -5…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Standards | BS 7671 BS 546 |
| Environmental characteristic | Indoor use |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.8 cm |
| Package 1 Width | 11.7 cm |
| Package 1 Length | 16 cm |
| Package 1 Weight | 50 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 460 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 1600 |
| Package 3 Height | 120 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 159000 g |
