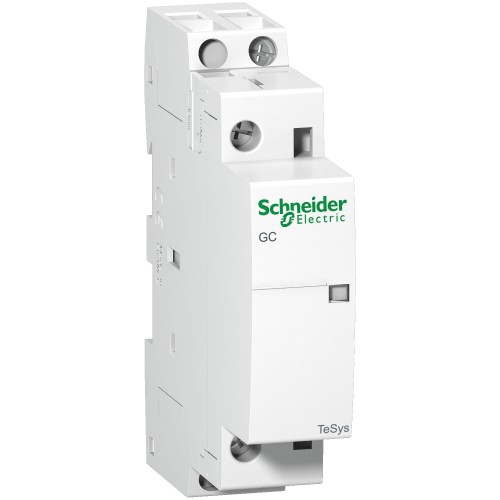

Schneider TeSys GC - modular contactor - 25 A - 1 NO - coil 220...240 V AC GC2510M5
TeSys GC modular contactor, 1 pole (1NC), 25A/250V AC-7a (heating) and 8.5A/250V AC-7b (motor control), for household applications. [...]
Model :GC2510M5
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
AED 62.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider TeSys GC - modular contactor - 25 A - 1 NO - coil 220...240 V AC GC2510M5
TeSys GC modular contactor, 1 pole (1NC), 25A/250V AC-7a (heating) and 8.5A/250V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 12 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh).
Specifications
| Range | TeSys |
|---|---|
| Product name | TeSys GC |
| Product or component type | Modular contactor |
| device short name | GC25 |
| Contactor application | Motor control Heating Lighting |
| Utilisation category | AC-7B AC-7A |
|---|---|
| Poles description | 1P |
| power pole contact composition | 1 NO |
| [Ue] rated operational voltage | <= 250 V AC |
| [Ie] rated operational current | 25 A AC-7A 8.5 A AC-7B |
| Operating position | 30°/vertical |
| Control circuit type | AC at 50 Hz |
| [Uc] control circuit voltage | 220...240 V AC 50 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Ith] conventional free air thermal current | 25 A (at 50 °C) for power circuit |
| Irms rated making capacity | 68 A at 400 V AC for power circuit conforming to IEC 61095 |
| Rated breaking capacity | 68 A at 400 V for power circuit conforming to IEC 61095 |
| [Icw] rated short-time withstand current | 200 A 40 °C - 10 s for power circuit 62 A 40 °C - 30 s for power circuit |
| Associated fuse rating | 25 A gL at <= 440 V for power circuit |
| Average impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| [Ui] rated insulation voltage | 500 V conforming to IEC 61095 500 V conforming to VDE 0110 |
| Electrical durability | AC-7A: 100000 cycles AC-7B: 100000 cycles |
| Power dissipation per pole | 1.6 W |
| Control type | Remote control |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| standards | IEC 61095 IEC 60947-5 |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 2.5 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1.5 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1.5 mm²solid without cable end Power circuit: screw clamp terminals 1 cable(s) 6 mm²flexible without cable end Power circuit: screw clamp terminals 2 cable(s) 4 mm²flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 6 mm²flexible with cable end Power circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 6 mm²solid without cable end Power circuit: screw clamp terminals 2 cable(s) 4 mm²solid without cable end |
| Tightening torque | Control circuit: 0.8 N.m - on screw clamp terminals Power circuit: 0.8 N.m - on screw clamp terminals |
| Operating time | 10...25 ms opening 10...30 ms closing |
| Mechanical durability | 1000000 cycles |
| Maximum operating rate | 300 cyc/h 50 °C |
| Control circuit voltage limits | Drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C) Operational: 0.85...1.1 Uc at 50 Hz (at <50 °C) |
| Inrush power in VA | 15 VA 50 Hz (at 20 °C) |
| Hold-in power consumption in VA | 3.8 VA 50 Hz (at 20 °C) |
| Heat dissipation | 1.3 W at 50/60 Hz |
| IP degree of protection | IP40 conforming to VDE 0106 (in enclosure) IP20 conforming to VDE 0106 |
|---|---|
| Protective treatment | TC |
| Ambient air temperature for operation | -5…50 °C |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | <= 3000 m |
| Mechanical robustness | Shocks contactor open: 10 Gn for 11 ms Shocks contactor closed: 15 Gn for 11 ms Vibrations contactor open: 2 Gn, 5...300 Hz Vibrations contactor closed: 3 Gn, 5...300 Hz |
| Total number of 18 mm modules | 1 |
| Height | 81 mm |
| Width | 17.5 mm |
| Depth | 62.5 mm |
| Product weight | 0.11 kg |
| Quantity per set | Set of 12 |
| Colour | White |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.0 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 23.0 cm |
| Package 1 Weight | 109.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 2.9 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 20.0 cm |
| Package 2 Weight | 1.37 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 11.42 kg |
| Warranty | 18 months |
|---|
