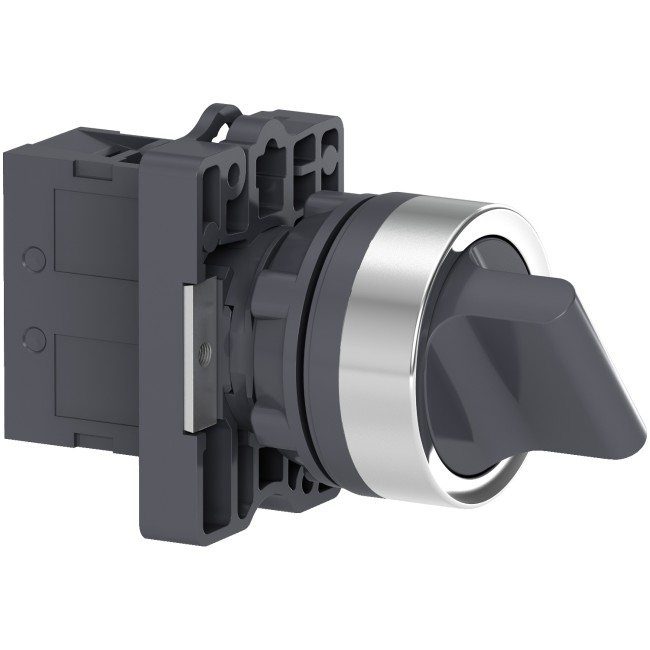

Schneider selector switch - Ø22 - standard handle - 2 positions - 1NO XA2ED21
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This [...]
Model :XA2ED21
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider selector switch - Ø22 - standard handle - 2 positions - 1NO XA2ED21
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This selector switch comes with a standard handle. It has 2 operating positions and operates with a stay-put mechanism. This selector switch provides a versatile interface for controlling machines. It has 1 NO contact with slow-break operation. This is a plastic switch with a metallic-look ring design bezel. It is an IP54 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.
Specifications
| Range of product | Easy Harmony XA2 |
|---|---|
| Product or component type | Complete selector switch |
| Device short name | XA2 |
| bezel material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
|---|---|
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Type of operator | stay put |
| Operator profile | Black standard handle |
| Operator position information | 2 positions 90° |
| Contacts type and composition | 1 NO |
| contact operation | Slow-break |
| Mechanical durability | 300000 cycles |
| Connections - terminals | , clamping capacity: <= 2 x 1.5 mm² , clamping capacity: <= 1 x 2.5 mm² , clamping capacity: >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A (screw-clamp terminals) |
| [Ui] rated insulation voltage | 600 V conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| Width | 30 mm |
| Height | 42 mm |
| Depth | 68.2 mm |
| Net weight | 0.04 kg |
| Type of operator | Stay put |
| Operator profile | Standard handle |
| Head type | Standard |
| Cap/operator or lens colour | Black |
| Protective treatment | TC |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK06 conforming to IEC 60529 |
| Standards | GB 14048.1 IEC 60947-1 GB 14048.5 IEC 60947-5-1 |
| Product certifications | CCC CE |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 120 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.300 cm |
| Package 1 Width | 3.300 cm |
| Package 1 Length | 6.350 cm |
| Package 1 Weight | 40.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 7.800 cm |
| Package 2 Width | 18.500 cm |
| Package 2 Length | 18.400 cm |
| Package 2 Weight | 470.000 g |
| Unit Type of Package 3 | BB2 |
| Number of Units in Package 3 | 5 |
| Package 3 Height | 7.800 cm |
| Package 3 Width | 18.500 cm |
| Package 3 Length | 18.400 cm |
| Package 3 Weight | 470.000 g |
