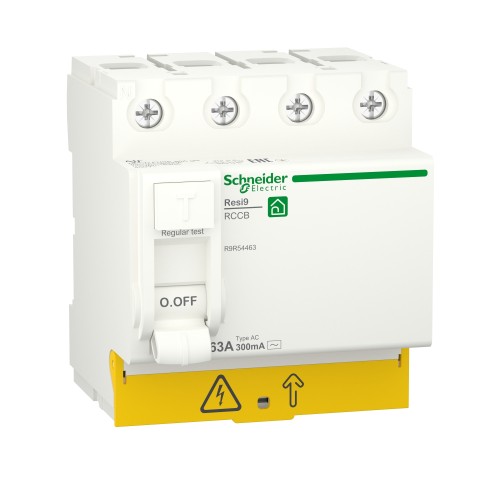

Schneider Residual current circuit breaker (RCCB), Resi9, 4P, 63A, AC type, 300mA R9R54463
Model :R9R54463
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Residual current circuit breaker (RCCB), Resi9, 4P, 63A, AC type, 300mA R9R54463
The Schneider Resi9 Residual Current Circuit Breaker (RCCB) R9R54463 is a robust and reliable solution designed for superior earth-leakage protection. This RCCB features a 4-pole design with a 63A rated current, making it ideal for residential and commercial electrical installations. With a 300mA sensitivity and AC-type tripping, it ensures quick response to leakage currents, preventing electrical hazards and enhancing safety. The Resi9 series is renowned for its easy installation and high mechanical durability, with a lifespan of up to 20,000 cycles. This RCCB is perfect for safeguarding electrical systems, particularly in environments where reliable protection against electric shocks and fire risks is crucial.
Features
Schneider Residual current circuit breaker (RCCB)
| Main | |
|---|---|
| Range | Resi9 |
| Product or component type | Residual current circuit breaker (RCCB) |
| Poles description | 4P |
| [In] rated current | 63 A |
| Network type | AC |
| Earth-leakage sensitivity | 300 mA |
| Earth-leakage protection time delay | Instantaneous |
| Earth-leakage protection class | Type AC |
| Rated breaking and making capacity | Im 630 A conforming to EN/IEC 61008 |
| Rated conditional short-circuit current | Inc 6 kA |
| Quality labels | EAC, UA TR |
| Complementary | |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 400 V AC 50/60 Hz |
| Residual current tripping technology | Voltage independent |
| [Ui] rated insulation voltage | 440 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Surge current | 250 A |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 8 |
| Height | 81 mm |
| Width | 72 mm |
| Depth | 73 mm |
| Net weight | 370 g |
| Embedding depth | 44 mm |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections - terminals |
Tunnel type terminals (top or bottom) - 1...35 mm² - rigid Tunnel type terminals (top or bottom) - 1...25 mm² - flexible Tunnel type terminals (top or bottom) - 1...25 mm² - flexible with ferrule |
| Wire stripping length | 15 mm for top or bottom connection |
| Tightening torque | 3.5 N.m top or bottom |
| Environment | |
| Standards | EN/IEC 61008-1, EN/IEC 61008-2-1 |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Overvoltage category | III |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -40…80 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.6 cm |
| Package 1 Width | 8.5 cm |
| Package 1 Length | 9.2 cm |
| Package 1 Weight | 342.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 9.861 kg |
