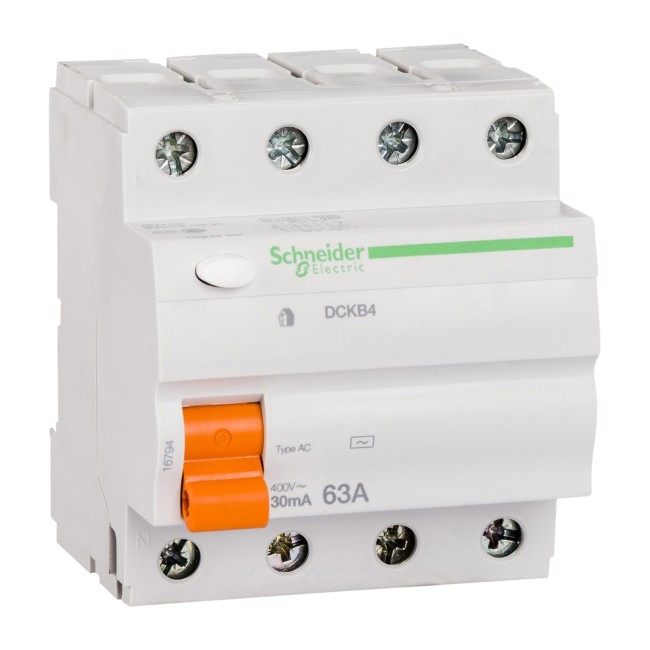

Schneider residual current circuit breaker - 4 poles - 63 A - class AC 30mA 16794
This product is a Domae residual current circuit breaker (RCCB). It is a 4P circuit breaker with 63A In rated current, [...]
Model :16794
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider residual current circuit breaker - 4 poles - 63 A - class AC 30mA 16794
This product is a Domae residual current circuit breaker (RCCB). It is a 4P circuit breaker with 63A In rated current, a sensitivity of 30mA with a AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. It has control of on load electric circuit, already protected against overloads and short circuit. This product is compliant with IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 630A. The (Inc/IΔc) conditional rated short circuit current is 6kA. The Ue operational voltage is 400VAC. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The dimensions are (W) 72mm x (H) 81mm x (D) 76mm. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 60°C.
Specifications
| Range | Domae |
|---|---|
| Product or component type | Residual current circuit breaker (RCCB) |
| device short name | RCCB |
| Poles description | 4P |
| Earth-leakage protection class | Type AC |
| Neutral position | Left |
|---|---|
| Device location in system | Outgoer |
| [In] rated current | 63 A |
| Network type | AC |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 400 V AC 50/60 Hz conforming to IEC 61008 |
| Residual current tripping technology | Electromechanical |
| Earth-leakage sensitivity | 30 mA |
| Earth-leakage protection time delay | Instantaneous |
| Rated breaking and making capacity | Im = 630 A |
| Rated conditional short-circuit current | 6 kA 63 A |
| [Ui] rated insulation voltage | 440 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Control type | Toggle |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| Connection pitch | 18 mm between phase and neutral |
| 9 mm pitches | 8 |
| Height | 81 mm |
| Width | 72 mm |
| Depth | 76 mm |
| Connections - terminals | Tunnel type terminals (downstream) 25 mm² flexible Tunnel type terminals (downstream) 35 mm² rigid Tunnel type terminals (upstream) 25 mm² flexible Tunnel type terminals (upstream) 35 mm² rigid |
| standards | IEC 61008 |
|---|---|
| Pollution degree | 2 |
| Tropicalisation | 2 conforming to IEC 61008 |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -40…60 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.3 cm |
| Package 1 Width | 9.2 cm |
| Package 1 Length | 7.5 cm |
| Package 1 Weight | 394 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 9 cm |
| Package 2 Width | 9.5 cm |
| Package 2 Length | 25.5 cm |
| Package 2 Weight | 1.186 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 27 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 11.126 kg |
| Warranty | 18 months |
|---|
