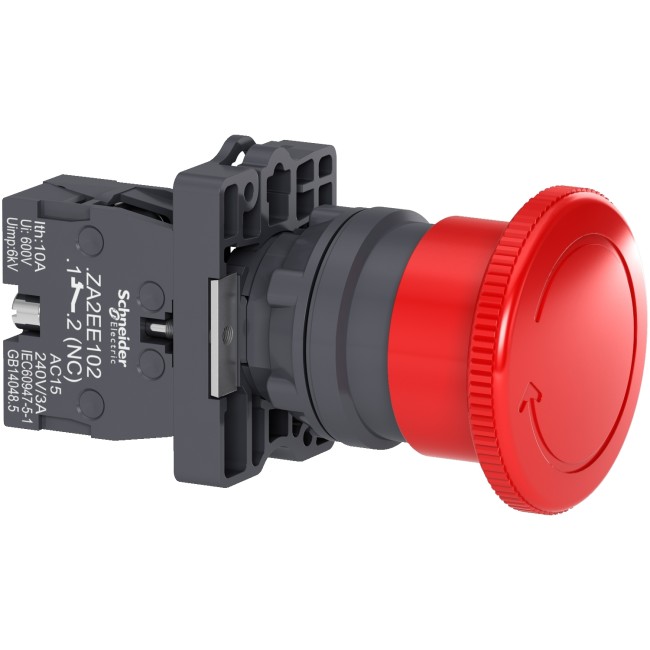

Schneider red Ø40 Emergency swtiching off push-button Ø22 non trigger - turn release 1NC XA2ES542
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider red Ø40 Emergency swtiching off push-button Ø22 non trigger - turn release 1NC XA2ES542
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This emergency switching off pusbutton comes with a mushroom head. It comes with turn to release operation. This mushroom headed pushbutton provides an ergonomic interface for controlling machines. It has 1 NC contact with slow-break operation. This is a plastic pushbutton. It has a 40mm diameter mushroom head. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is clearly distinguishable visually at a distance due to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.
Features
Main Range of produc Easy Harmony XA2 Product or component type Complete emergency switching off push-button Device short name XA2 bezel material Plastic Mounting diameter 22.5 mm
Complementary Operating position Any position Device mounting Fixing hole - diameter: 22 mm Fixing center >= 30 x 40 mm (panel) - thickness: 1…5 mm Shape of signaling unit head Round Type of operator Turn to release Reset Turn to release Operator profile Red mushroom Ø 40 mm Cap/operator or lens colour Red Contacts type and composition 1 NC contact operation Slow-break Positive opening With NC contact Mechanical durability 100000 cycles Connections - terminals Screw clamp terminal, <= 2 x 1.5 mm²
Screw clamp terminal, <= 1 x 2.5 mm²
Screw clamp terminal, >= 1 x 0.5 mm²
Faston terminals, connection size: 6.3 mm Tightening torque 0.8 N.m Short-circuit protection 10 A gL fuse conforming to IEC 60269-1 [Ui] rated insulation voltage 600 V conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1 [Ie] rated operational current 3 A at 240 V, AC-15, A600
0.27 A at 250 V, DC-13, Q600 Electrical durability 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 Electrical reliability Λ < 10exp(-8) at 24 V height 30 mm Width 42 mm Depth 74.2 mm Net weight 0.058 kg Type of operator Mechanical latching
Environment Protective treatment TC Ambient air temperature for storage -40…70 °C ambient air temperature for operation -25…55 °C Overvoltage category Class I conforming to IEC 536 IP degree of protection IP65 conforming to IEC 60068-2-27 IK degree of protection IK03 Standards IEC 60947-1
GB 14048.1
GB 14048.5
IEC 60947-5-1
IEC 60529 product certifications CCC
CE Vibration resistance 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 Shock resistance 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
| Range of produc | Easy Harmony XA2 |
|---|---|
| Product or component type | Complete emergency switching off push-button |
| Device short name | XA2 |
| bezel material | Plastic |
| Mounting diameter | 22.5 mm |
| Operating position | Any position |
|---|---|
| Device mounting | Fixing hole - diameter: 22 mm |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Shape of signaling unit head | Round |
| Type of operator | Turn to release |
| Reset | Turn to release |
| Operator profile | Red mushroom Ø 40 mm |
| Cap/operator or lens colour | Red |
| Contacts type and composition | 1 NC |
| contact operation | Slow-break |
| Positive opening | With NC contact |
| Mechanical durability | 100000 cycles |
| Connections - terminals | Screw clamp terminal, <= 2 x 1.5 mm² Screw clamp terminal, <= 1 x 2.5 mm² Screw clamp terminal, >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| height | 30 mm |
| Width | 42 mm |
| Depth | 74.2 mm |
| Net weight | 0.058 kg |
| Type of operator | Mechanical latching |
| Protective treatment | TC |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60068-2-27 |
| IK degree of protection | IK03 |
| Standards | IEC 60947-1 GB 14048.1 GB 14048.5 IEC 60947-5-1 IEC 60529 |
| product certifications | CCC CE |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
