Schneider RC Transient Suppressor 110 TO 250 VAC LAD4RCU
Model :LAD4RCU
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New

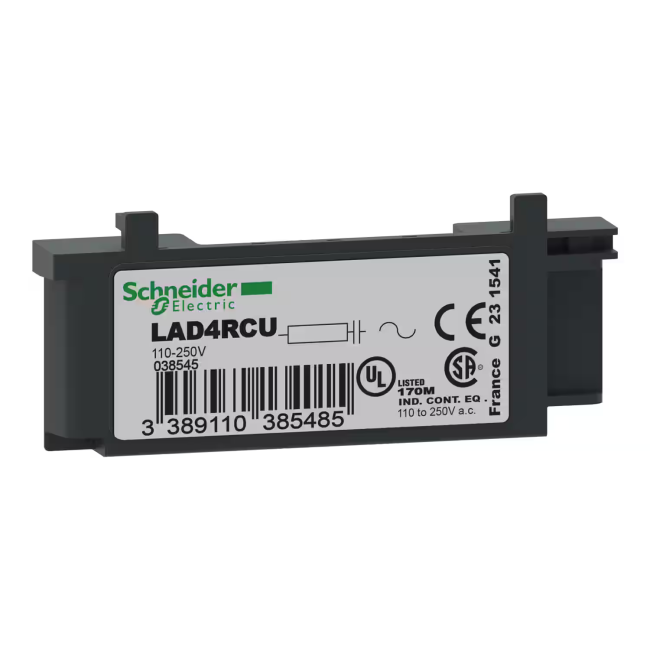

Description for Schneider RC Transient Suppressor 110 TO 250 VAC LAD4RCU
The Schneider RC Transient Suppressor LAD4RCU is a high-performance surge protection device designed to shield electrical systems from transient overvoltages. Operating within a voltage range of 110 to 250 VAC, this suppressor is crucial for protecting sensitive electronic equipment from spikes and surges caused by lightning strikes or switching events. Its compact design allows for easy installation in various electrical setups, enhancing the longevity and reliability of connected devices. The LAD4RCU provides efficient transient suppression with minimal impact on the system’s performance, making it an ideal choice for both residential and commercial applications.
Features
Product Specifications
| Main | |
|---|---|
| Range | TeSys |
| Device short name | LAD4 |
| Product or component type | Suppressor module |
| Product compatibility |
3P LC1D09...D38 4P LC1DT20...DT40 4P LC1D098...D258 CAD32, CAD50 |
| Complementary | |
| Mounting location | Side |
| Mounting mode | By clips |
| Suppressor technology | RC circuit |
| [Uc] control circuit voltage | 110...250 V AC |
| Maximum peak voltage | 3 Uc |
| Net weight | 0.012 kg |
| Environment | |
| Standards |
IEC 60947-5-1 EN 60947-5-1 CSA C22.2 No 60947-5-1 UL 60947-5-1 GB/T 14048.5 |
| Product certifications | UL, CSA |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -40…80 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.100 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 5.000 cm |
| Package 1 Weight | 14.000 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 1.207 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 2240 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 48.539 kg |
| Contractual warranty | |
| Warranty | 18 months |
