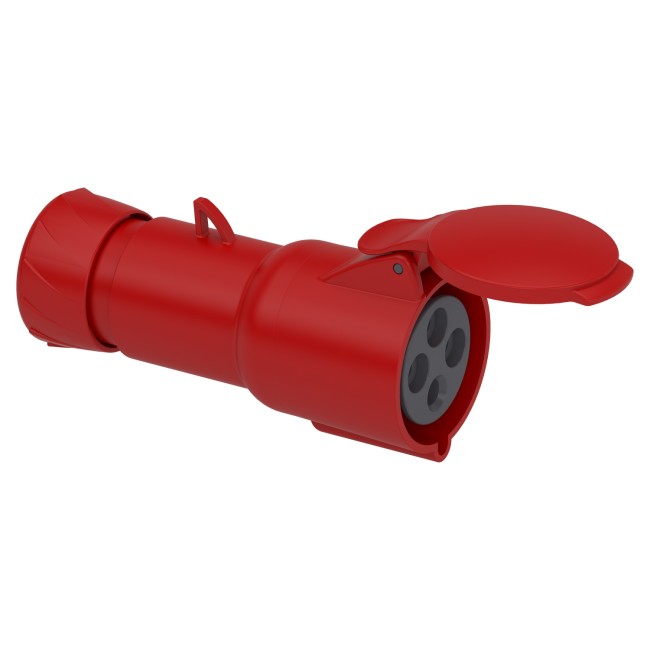

Schneider PratiKa wander socket - straight - 32 A - 3P + E - 380...415 V AC - IP44 PKY32M434
This Pratika industrial wander socket with fast connection connection is straight. It has 3P+E poles, rated current is 32A and [...]
Model :PKY32M434
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider PratiKa wander socket - straight - 32 A - 3P + E - 380...415 V AC - IP44 PKY32M434
This Pratika industrial wander socket with fast connection connection is straight. It has 3P+E poles, rated current is 32A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 98mm x (H) 98mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A are 2.5mm² to 10mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Specifications
| Range | Mureva |
|---|---|
| Product or component type | Wander socket |
| Device short name | Mureva fast |
| Plug, socket category | Low voltage |
| Poles description | 3P + E |
| Network type | AC |
| Outlet standard | Industrial |
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Fast connection |
| Cable cross section | 2.5…6 mm² |
| Cable outer diameter | 11.5…21 mm |
| Cable entry | Fair lead Cable gland |
| Thread type | Pg 21 |
| Net weight | 0.26 kg |
| Height | 98 mm |
| Width | 98 mm |
| Depth | 165 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Standards | IEC 60309-1 IEC 60309-2 |
|---|---|
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.6 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 17.4 cm |
| Package 1 Weight | 242.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 17.0 cm |
| Package 2 Width | 27.0 cm |
| Package 2 Length | 26.3 cm |
| Package 2 Weight | 2.6 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 20 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 5.687 kg |
| Warranty | 18 months |
|---|
