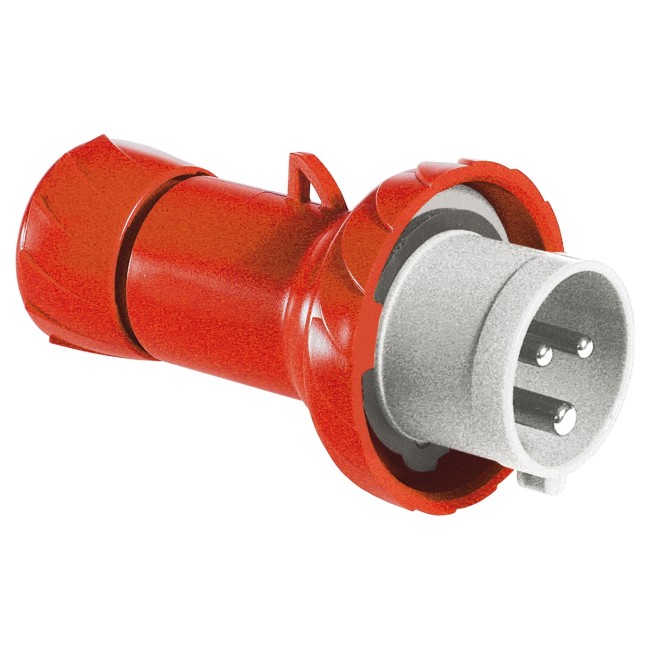

Schneider PratiKa wander plug - straight - 16 A - 2P + E - 380...415 V AC - IP67 PKE16M733
This Pratika industrial wander plug with captive screws connection is straight. It has 2P+E poles, rated current is 16A and [...]
Model :PKE16M733
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider PratiKa wander plug - straight - 16 A - 2P + E - 380...415 V AC - IP67 PKE16M733
This Pratika industrial wander plug with captive screws connection is straight. It has 2P+E poles, rated current is 16A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 73mm x (H) 129mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm² to 4mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 9h.
Specifications
| Range | PratiKa |
|---|---|
| Product or component type | Wander plug |
| device short name | PratiKa plug |
| Plug, socket category | Low voltage |
| Poles description | 2P + E |
| Network type | AC |
| Outlet standard | Industrial |
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 9 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| Cable outer diameter | 8…15 mm |
| Cable entry | Cable gland Fair lead |
| Thread type | Pg 16 |
| Product weight | 0.144 kg |
| Height | 129 mm |
| Width | 73 mm |
| Depth | 73 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| standards | IEC 60309-1 IEC 60309-2 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12 cm |
| Package 1 Width | 26.3 cm |
| Package 1 Length | 27 cm |
| Package 1 Weight | 140 g |
| Warranty | 18 months |
|---|
