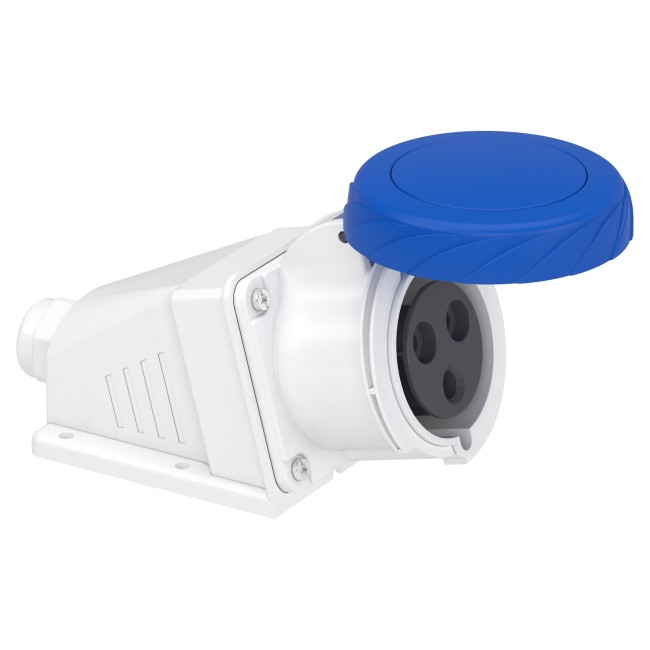

Schneider PratiKa socket - screw - angled - 32A - 2P E - 200...250 V AC - wall PKF32W723
This Pratika industrial socket with captive screws connection is angled wall mounted. It has 2P+E poles, rated current is 32A [...]
Model :PKF32W723
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
AED 90.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider PratiKa socket - screw - angled - 32A - 2P E - 200...250 V AC - wall PKF32W723
This Pratika industrial socket with captive screws connection is angled wall mounted. It has 2P+E poles, rated current is 32A and the operating voltage is 200VAC to 250VAC. The dimensions of the base plate are (W) 106mm x (H) 191mm. The degree of protection is IP67 and IK08. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm² to 10mm². The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Specifications
| Range | Mureva |
|---|---|
| Product or component type | Socket |
| device short name | Mureva socket |
| Plug, socket category | Low voltage |
| Poles description | 2P + E |
| Network type | AC |
| Outlet standard | Industrial |
| Mounting mode | Wall-mounted |
|---|---|
| Plug, socket, control station shape | Angled |
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 200...250 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 2.5…10 mm² |
| Cable outer diameter | 21 mm |
| Thread type | M25 |
| Height | 191 mm |
| Width | 106 mm |
| Depth | 148 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Blue |
| standards | IEC 60309-2 IEC 60309-1 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 750 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.4 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 16.1 cm |
| Package 1 Weight | 310 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 17.6 cm |
| Package 2 Width | 26.6 cm |
| Package 2 Length | 27 cm |
| Package 2 Weight | 1.74 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 10 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 3.967 kg |
| Warranty | 18 months |
|---|
