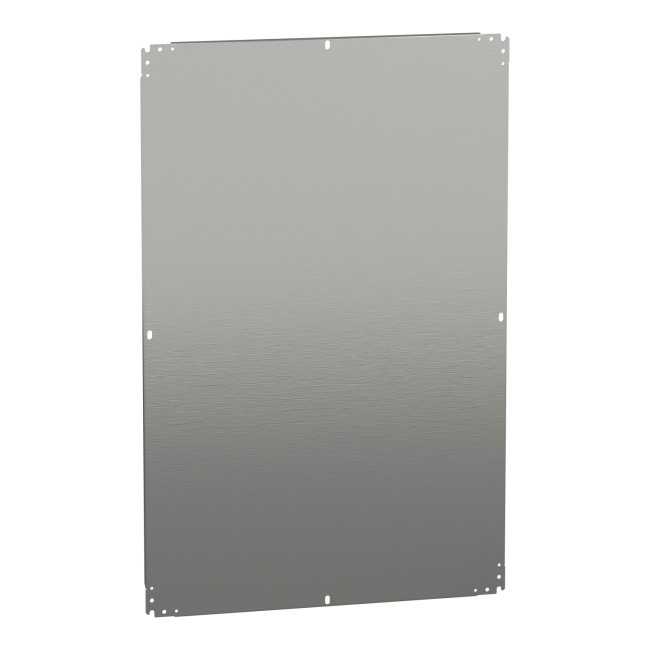

Schneider Plain mounting plate H1200xW800mm made of galvanised sheet steel NSYMM128
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1200 x W is800 mm. Multi-purpose mounting [...]
Model :NSYMM128
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Plain mounting plate H1200xW800mm made of galvanised sheet steel NSYMM128
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1200 x W is800 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 180 Kg permissible load. Galvanised steel. Set of 1. Reversible dimensions is Can be installed in enclosure with inverted dimensions.
Specifications
| Range | Spacial |
|---|---|
| accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 1200 mm W: 800 mm - H: 800 mm W: 1200 mm |
| Mounting location | Direct fixing on backstuds Step slide |
| Mounting plate description | Plain |
| Range compatibility | Spacial (Spacial S3D) Spacial (Spacial CRN) Spacial (Spacial S3X) Thalassa (Thalassa PLM) |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds - screw type M8 By fixing element |
|---|---|
| Permanent permissible load | 180 kg |
| Height | 1150 mm |
| Width | 750 mm |
| Thickness | 1.8 mm |
| Net weight | 17.325 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 76.000 cm |
| Package 1 Length | 116.000 cm |
| Package 1 Weight | 18.020 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 59.500 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 228.240 kg |
| Warranty | 18 months |
|---|
