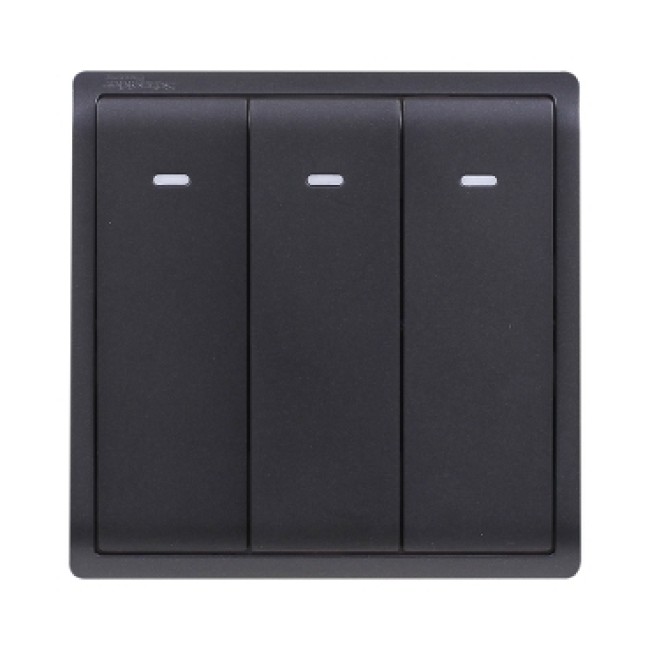

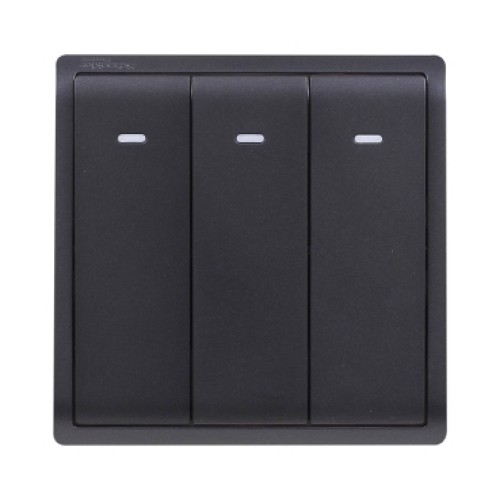

Schneider Pieno 10A 250V 3 Gang Momentary Switch with Fluorescent Locator (MB) - E8233PRL1F_MB
Model :E8233PRL1F_MB
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Pieno 10A 250V 3 Gang Momentary Switch with Fluorescent Locator (MB) - E8233PRL1F_MB
The Schneider Pieno Momentary Switch (E8233PRL1F_MB) combines functionality with a sleek design. Rated for 10A and 250V, this 3-gang switch offers reliable performance for various electrical applications. It features a momentary action for temporary on/off control and includes a fluorescent locator to enhance visibility in low-light conditions. Ideal for both residential and commercial settings, the Pieno switch ensures ease of use and adds a modern touch to your electrical installations.
Specifications
Product Specifications
| Main | |
|---|---|
| Range of product | Pieno |
| Product or component type | Switch |
| Switch function | Momentary |
| Switch application | Switch |
| Rated current | 10 A at 250 V AC 50 Hz |
| Local signalling | Fluorescent (white) |
| Number of gangs | 3 gangs |
| Load type | Fluorescent Resistive |
| Complementary | |
| Wiring device mounting | Flush Surface |
| Material | Polycarbonate: surround Polycarbonate: grid plate |
| Connections - terminals | Pillar terminals |
| Clamping connection capacity | 2 x 1.5 mm² for stranded cable(s) 2 x 2.5 mm² for solid cable(s) |
| Width | 87 mm |
| Height | 87 mm |
| Environment | |
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| Standards | GB 16915.1 IEC 60669-1 |
| Product certifications | CCC |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.4 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 92.98 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 19.0 cm |
| Package 2 Length | 19.5 cm |
| Package 2 Weight | 1.026 kg |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 21.5 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 6.635 kg |
