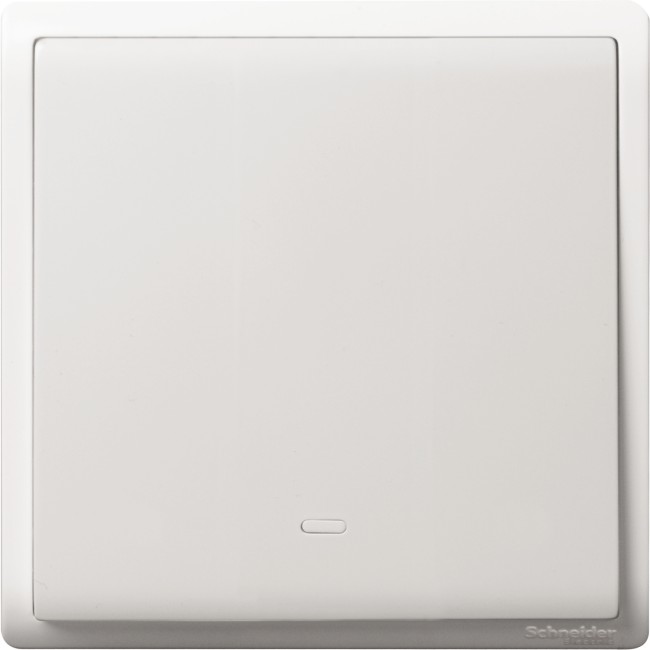

Schneider Pieno - 10A 250V - 1 gang momentary switch with fluorsecent locator E8231PRL1F
Model :E8231PRL1F
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
only 4 item(s) remaining
AED 16.55
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider Pieno - 10A 250V - 1 gang momentary switch with fluorsecent locator E8231PRL1F
Specifications
| Range of product | Pieno |
|---|---|
| Product or component type | Switch |
| Switch function | Momentary |
| Switch application | Switch |
| Rated current | 10 A at 250 V AC 50 Hz |
| Local signalling | Fluorescent (white) |
| Number of gangs | 1 gang |
| Load type | Resistive Fluorescent |
| Wiring device mounting | Surface Flush |
|---|---|
| Material | Polycarbonate: surround Polycarbonate: grid plate |
| Connections - terminals | Pillar terminals |
| Clamping connection capacity | 2 x 1.5 mm² for stranded cable(s) 2 x 2.5 mm² for solid cable(s) |
| Width | 87 mm |
| Height | 87 mm |
| Ambient air temperature for operation | -5…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Standards | GB 16915.1 IEC 60669-1 |
| Product certifications | CCC |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.3 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 83.2 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 19 cm |
| Package 2 Length | 19.5 cm |
| Package 2 Weight | 928 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 21.5 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 6.048 kg |
