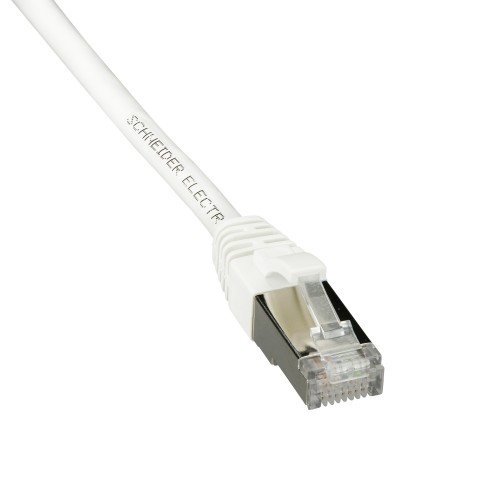

Schneider Patch cord, Actassi, Category 6A, S/FTP, PVC, 3 m, white ACTPC6ASFCM30WE
This Actassi patch cord is a 4 pairs Cat 6A S/FTP patch cord and is white. It is compliant to the [...]
Model :ACTPC6ASFCM30WE
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Patch cord, Actassi, Category 6A, S/FTP, PVC, 3 m, white ACTPC6ASFCM30WE
This Actassi patch cord is a 4 pairs Cat 6A S/FTP patch cord and is white. It is compliant to the following standards - EN 50173, IEC 61935-2, ISO/IEC 11081, TIA/EIA-568-C.2. The copper cable diameter is AWG 28. The patch cord is made of PE (polyethylene), PVC (polyvinyl chloride), aluminium/polyester, tin plated copper. The contacts material are phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel. The transmission frequency is 500 MHz.
Specifications
| range | Actassi |
|---|---|
| product | Patch cord |
| Device application | Communication |
| Colour | White |
| Cable shielding type | S/FTP |
| Type of cable | 4 pair cables |
|---|---|
| length (customizable value in configurator) | 3 m |
| Communication network category | 6A |
| Transmission frequency | 500 MHz |
| Contacts material | Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel |
| AWG gauge | AWG 28 |
| Maximum number of cord per bundle | 48 in cabinet for 4PPoE Type 3 (up to 60 W) 24 in cabinet for 4PPoE Type 4 (up to 90 W) |
| Maximum patch cord cumulated length | 10 m with 84 m 2-point permanent link at 20 °C 7 m with 90 m 2-point permanent link at 20 °C |
| Minimum number of matings | 750 cycles |
| Cable outer diameter | 5.5 mm +/- 0.2 mm |
| Material | PVC (polyvinyl chloride): sheath Copper: conductor PE (polyethylene): wire insulation Aluminium/polyester: foil Tin plated copper: braid shield |
| Flame retardance | CM |
|---|---|
| Standards | ISO/IEC 11081-2017 performance TIA/EIA-568-C.2 performance EN 50173-2018 performance IEC 61935-2 performance |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.0 cm |
| Package 1 Width | 14.0 cm |
| Package 1 Length | 21.0 cm |
| Package 1 Weight | 119.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 38 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 5.37 kg |
| Package 3 Height | 105 cm |
