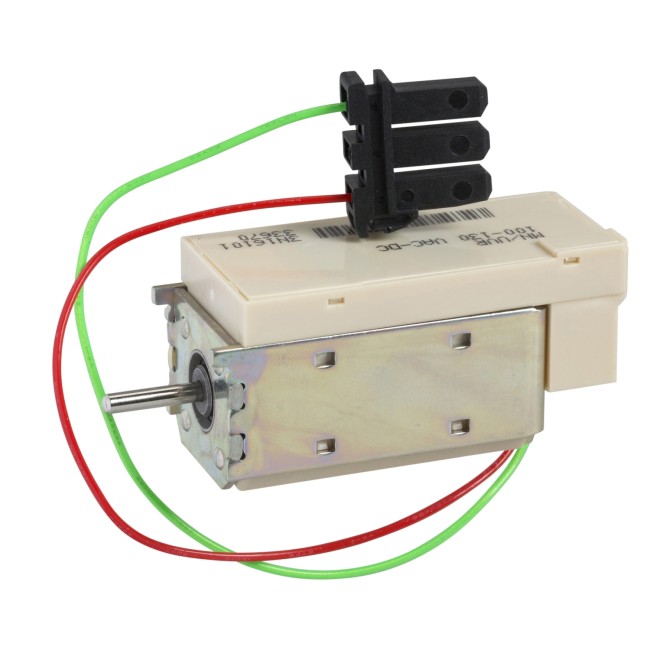

Schneider MX shunt release, ComPact NS630b to NS3200 fixed, MasterPact NT/NW, rated voltage 24/30 VDC, 24 VAC 50/60 Hz 33659
This is a MX shunt trip release for Compact NS 630b to Compact NS 3200 devices. Its rated voltage is 24VDC to 30[...]
Model :33659
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
AED 353.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider MX shunt release, ComPact NS630b to NS3200 fixed, MasterPact NT/NW, rated voltage 24/30 VDC, 24 VAC 50/60 Hz 33659
This is a MX shunt trip release for Compact NS 630b to Compact NS 3200 devices. Its rated voltage is 24VDC to 30VDC or 24VAC 50/60Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. Compact NS 630b to Compact NS 3200 device can be equipped with 1 MX or 1 MN auxiliary.
Specifications
| Range | ComPacT |
|---|---|
| Range of product | ComPacT NS630b...1600 new generation ComPacT NS1600b...3200 new generation |
| Device short name | MX |
| Product or component type | Voltage release |
| Device application | Control |
| Voltage release type | Opening coil Instantaneous voltage release |
| control type | Standard |
| [Uc] control circuit voltage | 24 V AC 50 Hz 24...30 V DC |
| Circuit breaker mounting mode | Fixed |
| Range compatibility | ComPact (ComPact NS630b...1600) ComPact (ComPact NS1600b...3200) |
| Operating threshold | 0.7...1.1 x Un opening |
|---|---|
| Response time | 50 ms +/- 10 % for Compact NS630b...1600 50 ms +/- 10 % for Compact NS1600b...3200 55 ms +/- 10 % for MasterPact NT 70 ms +/- 10 % for MasterPact NW |
| Supply holding power | 4.5 VA |
| Accessory / separate part category | Spare part for MasterPact NT Spare part for MasterPact NW Spare part for ComPacT NS630b...1600 new generation Spare part for ComPacT NS1600b...3200 new generation |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.3 cm |
| Package 1 Width | 6.0 cm |
| Package 1 Length | 8.4 cm |
| Package 1 Weight | 150.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.0 cm |
| Package 2 Width | 18.5 cm |
| Package 2 Length | 13.2 cm |
| Package 2 Weight | 1.57 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 19.303 kg |
| Warranty | 18 months |
|---|
