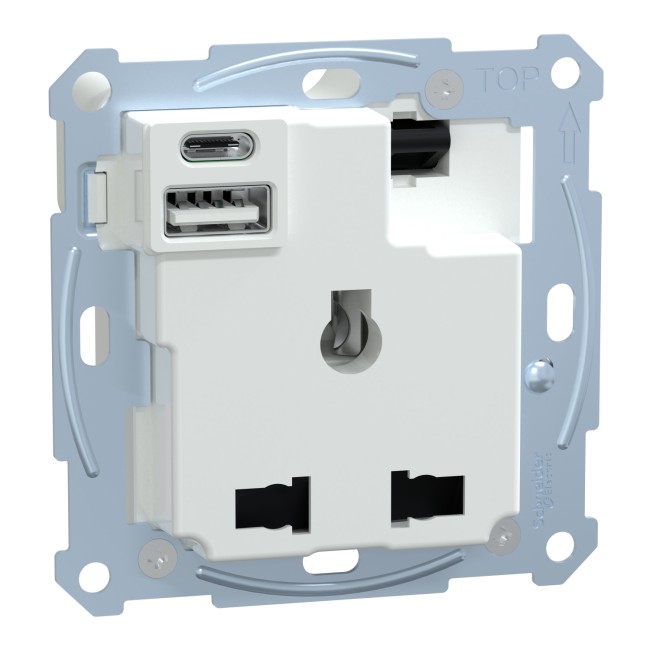

Schneider Multistandard switched socket with USB A C, Merten inserts, 13A, 250V, 50/60Hz MTN2175-0000
This Schneider Electric Merten inserts multistandard switched socket with USB, is specially designed for residential use. It has electronic overload and [...]
Model :MTN2175-0000
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Multistandard switched socket with USB A C, Merten inserts, 13A, 250V, 50/60Hz MTN2175-0000
This Schneider Electric Merten inserts multistandard switched socket with USB, is specially designed for residential use. It has electronic overload and temperature protection with automatic reset short-circuit and automatic overload protection. This belongs to merten inserts and can be used with System M, System Design aesthetic group. It has class double electrical insulation. Its rated current is 13A with rated operational voltage is 250V at 50/60Hz. The Power consumption is 0.3W. This device is mounted by flush type. The dimensions are (W) 71mm x (H) 71mm and (D) 37mm with embedding depth is 26mm.The weight of the product is 0.1052g. The surface finish of this product is stainless steel. The operating temperatures are from 0°C to +35°C. The storage temperatures are from -20°C to +70°C. The degree of protection is IP20. In residential buildings, offices, schools or hotels, Merten insert stands for inspiration, design and functionality in all living spaces. This saves time and installation costs and gives the end user an inexpensive option for updating their switch design. It is free from lead.
Specifications
| Range | Merten |
|---|---|
| aesthetic name | System Design |
| Product or component type | Switched socket with USB charger |
| Device presentation | Mechanism |
| Socket additional information | Earthed |
| Colour tint | - (-) |
| Type of packing | Box |
| Quantity per set | 1 |
| Sale per indivisible quantity | 1 |
| Socket number | 1 |
|---|---|
| Device mounting | Flush 26 mm |
| Local signalling | Without: without |
| Switch function | 1-pole |
| Number of power socket outlets | 1 x 1P + E, universal |
| Rated current | 13 A 250 V, AC, 50/60 Hz |
| Surface finish | Stainless steel |
| Number of gangs | 1 gang |
| Connector type | USB |
| [Ue] rated operational voltage | 250 V AC 50...60 Hz |
| Power consumption in W | 0.3 W |
| Input power | 0.3 W |
| Integrated connection type | 2 USB port 15 V DC, maximum load current: <= 3 A |
| Protection type | Electronic overload and temperature protection with automatic reset Short-circuit and automatic overload protection |
| Shape of screw head | Cross |
| Screwdriver shape | Philips |
| Electrical connection | 3 0.2...2.5 mm² |
| Clamping connection capacity | 0.5...2.5 mm² for rigid or flexible cable(s) |
| Wire stripping length | 10…12 mm |
| Mounting support | Flush mounting conforming to BS 1363-4 |
| Fixing mode | 4 fixing points M3.5 x 25 mm |
| Fixing center | 72 mm |
| Electrical insulation class | Double insulation |
| Height | 71 mm |
| Width | 71 mm |
| Depth | 37 mm |
| Embedding depth | 26 mm |
| Product weight | 0.105 kg |
| Operating altitude | 0...2500 m |
|---|---|
| Ambient air temperature for operation | 0…35 °C |
| Ambient air temperature for storage | -20…70 °C |
| Relative humidity | 10…90 % |
| Directives | 2006/95/EC - low voltage directive |
| Product certifications | EMC BSI 1363 |
| IK degree of protection | IK03 |
| IP degree of protection | IP20 |
| Environmental characteristic | Low voltage directive |
| Environmental health and issues | Lead free |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6 cm |
| Package 1 Width | 7.5 cm |
| Package 1 Length | 7.5 cm |
| Package 1 Weight | 135.8 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 44 |
| Package 2 Height | 18.6 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 30 cm |
| Package 2 Weight | 6.5 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 1760 |
| Package 3 Height | 108 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 272 kg |
