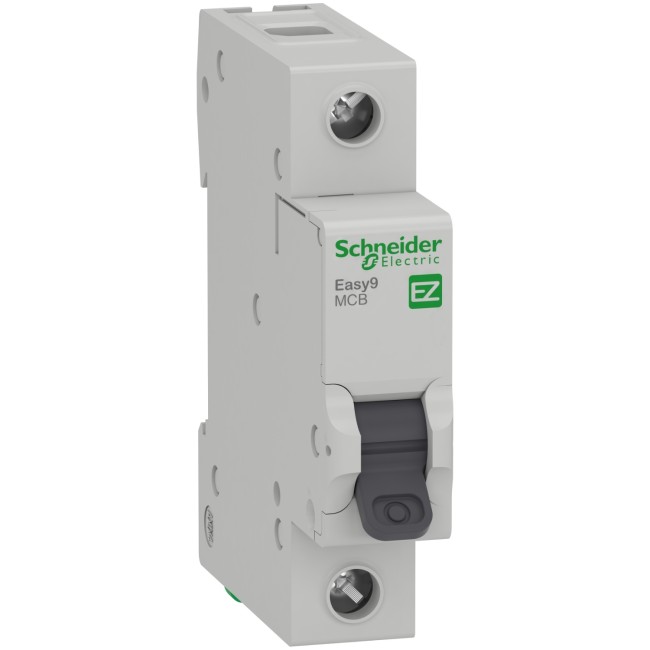

Schneider Miniature circuit breaker, Easy9, 1P, 10 A, C curve, 10000 A EZ9F51110

This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 10[...]
Model :EZ9F51110
SKU :
Assured

No Return This item cannot be returned or exchanged
Cash on Delivery Cash on Delivery available
AED 14.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

100%
- +
Bulk Order

  •  Condition: New

Description for Schneider Miniature circuit breaker, Easy9, 1P, 10 A, C curve, 10000 A EZ9F51110


This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 10A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 230VAC conforming to IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is dedicated for residential and small commercial buildings. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9mm. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 66.5mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.

Specifications


Main
RangeEasy9
Device applicationDistribution
product or component typeMiniature circuit-breaker
device short nameEasy9 MCB
Poles1P
Number of protected poles1
[In] rated current10 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Breaking capacity10000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1
10000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
Suitability for isolationYes conforming to IEC 60898-1
Complementary
Network frequency50/60 Hz
[Ue] rated operational voltage230 V AC 50/60 Hz
Magnetic tripping limit5...10 x In
[Ics] rated service breaking capacity7500 A 75 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1
Limitation class3 conforming to IEC 60898-1
[Ui] rated insulation voltage500 V AC 50/60 Hz conforming to IEC 60898-1
[Uimp] rated impulse withstand voltage4 kV conforming to IEC 60898-1
Contact position indicatorYes
Control typeToggle
Local signallingWithout
Mounting modeClip-on
Mounting supportDIN rail
9 mm pitches2
Height81 mm
Width18 mm
Depth66.5 mm
ColourGrey (RAL 7035)
Mechanical durability20000 cycles
Electrical durability4000 cycles
Connections - terminalsTunnel type terminal (top or bottom) 1…25 mm² rigid
Tunnel type terminal (top or bottom) 1…16 mm² flexible
Wire stripping length14 mm for top or bottom connection
Tightening torque2 N.m top or bottom
earth-leakage protectionWithout
Environment
StandardsIEC 60898-1
Product certificationsCE
IP degree of protectionIP20 conforming to IEC 60529
Pollution degree2
Tropicalisation2
Relative humidity95 % at -5…60 °C
Ambient air temperature for operation-5…60 °C
Ambient air temperature for storage-40…85 °C
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height7.4 cm
Package 1 Width1.8 cm
Package 1 Length8.5 cm
Package 1 Weight102.0 g
Unit Type of Package 2CAR
Number of Units in Package 212
Package 2 Height88 mm
Package 2 Width78 mm
Package 2 Length226 mm
Package 2 Weight1224 g
Unit Type of Package 3S03
Number of Units in Package 3144
Package 3 Height30 cm
Package 3 Width30 cm
Package 3 Length40 cm
Package 3 Weight14.688 kg
