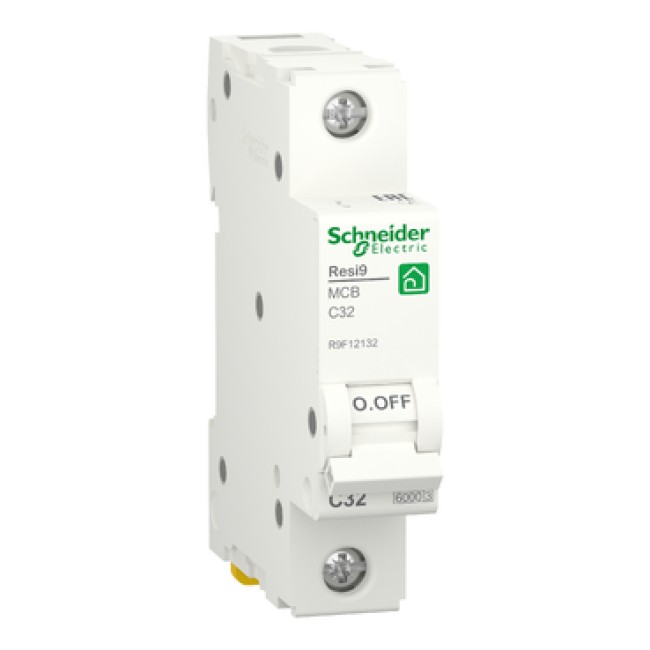

Schneider Miniature circuit breaker (MCB), Resi9, 1P, 32A, C curve, 6000A (IEC/EN 60898-1) R9F12132
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Miniature circuit breaker (MCB), Resi9, 1P, 32A, C curve, 6000A (IEC/EN 60898-1) R9F12132
The Schneider Resi9 1P 32A Miniature Circuit Breaker (MCB) is a reliable and efficient solution for protecting electrical circuits in residential and commercial installations. Designed with a C curve trip characteristic, this MCB is ideal for handling moderate inrush currents from devices like lighting circuits and general-purpose outlets. It offers robust protection with a 6000A breaking capacity, adhering to the stringent IEC/EN 60898-1 standards, ensuring safety and compliance.
This MCB is rated for 32A and features a single-pole (1P) design, making it suitable for single-phase circuits. The compact and modular design of the Resi9 series allows for easy installation and integration into distribution boards. Engineered for long-lasting performance, the Schneider Resi9 MCB provides dependable circuit protection, reducing the risk of overloads and short circuits.
The Schneider Resi9 Miniature Circuit Breaker (MCB) R9F12132 is a single-pole (1P) device designed to provide reliable protection for electrical circuits. Rated at 32A, this MCB features a C curve, making it suitable for a wide range of applications, including residential and light commercial use. The MCB offers a breaking capacity of 6000A, conforming to IEC/EN 60898-1 standards, ensuring safety and performance under short circuit conditions. Its compact design and easy installation make it an ideal choice for protecting circuits from overloads and short circuits, maintaining the safety and integrity of your electrical systems.
Specifications
Schneider Resi9 1P 32A MCB, C Curve, 6000A, R9F12132
| Category | Specification |
|---|---|
| Main | |
| Range | Resi9 |
| Product name | Resi9 MCB |
| Product or component type | Miniature circuit-breaker |
| Device application | Protection |
| Poles description | 1P |
| Number of protected poles | 1 |
| [In] rated current | 32 A |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Standards | EN/IEC 60898-1 |
| Quality labels | EAC, UA TR |
| Complementary | |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 230 V AC 50/60 Hz |
| Magnetic tripping limit | 5...10 x In AC |
| Limitation class | 3 conforming to EN/IEC 60898-1 |
| [Ui] rated insulation voltage | 440 V AC |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 72 mm |
| Embedding depth | 44 mm |
| Net weight | 120 g |
| Colour | White (RAL 9003) |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections - terminals | Tunnel type terminals (top or bottom) - 1...25 mm² - rigid Tunnel type terminals (top or bottom) - 1...16 mm² - flexible with ferrule Tunnel type terminals (top or bottom) - 1...16 mm² - flexible |
| Wire stripping length | 14 mm |
| Tightening torque | 2 N.m |
| Earth-leakage protection | Without |
| Environment | |
| IP degree of protection | IP20 |
| Pollution degree | 2 conforming to EN/IEC 60898-1 |
| Overvoltage category | III |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…60 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.8 cm |
| Package 1 Width | 7.5 cm |
| Package 1 Length | 8.5 cm |
| Package 1 Weight | 96 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8 cm |
| Package 2 Width | 9 cm |
| Package 2 Length | 22.5 cm |
| Package 2 Weight | 1.195 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 144 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 14.746 kg |
