Schneider Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, with electrical interlock LAD9R1V
TeSys D kit for reversing contactors assembly, for 3-pole contactors LC1D09-D38. For assembling 2 identical contactors horizontally mounted, connection by [...]
Model :LAD9R1V
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, with electrical interlock LAD9R1V

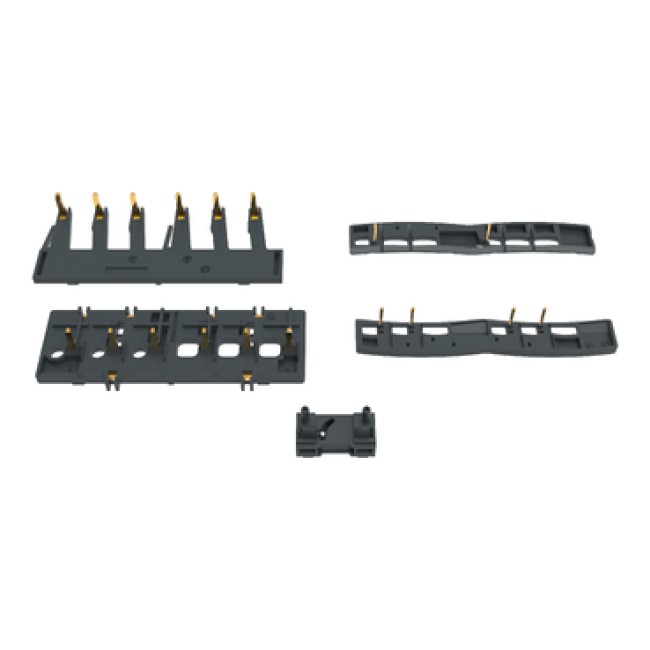

TeSys D kit for reversing contactors assembly, for 3-pole contactors LC1D09-D38. For assembling 2 identical contactors horizontally mounted, connection by screw clamp terminals. It contains a mechanical interlock LAD9V2, an electrical interlocking LAD9V1, a set of 3 parallel bars LAD9V5, a set of 3 reverser bars LAD9V6. It conforms to RoHS/REACh regulation.
Specifications
| Range of product | TeSys Deca |
|---|---|
| Range | TeSys Linergy |
| Device short name | LAD9 |
| Product or component type | Kits for reversing contactor |
| Poles description | 3P |
| Range compatibility | TeSys (TeSys D) contactor TeSys (TeSys Deca) |
| Product compatibility | LC1D09 LC1D12 LC1D18 LC1D25 LC1D32 LC1D38 |
| Kit composition | Electrical and mechanical interlock Set of power connection |
|---|---|
| Net weight | 0.045 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8 cm |
| Package 1 Width | 2.5 cm |
| Package 1 Length | 9.3 cm |
| Package 1 Weight | 70 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.6 cm |
| Package 2 Width | 9.8 cm |
| Package 2 Length | 15 cm |
| Package 2 Weight | 726 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 140 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 10.664 kg |
| Warranty | 18 months |
|---|
