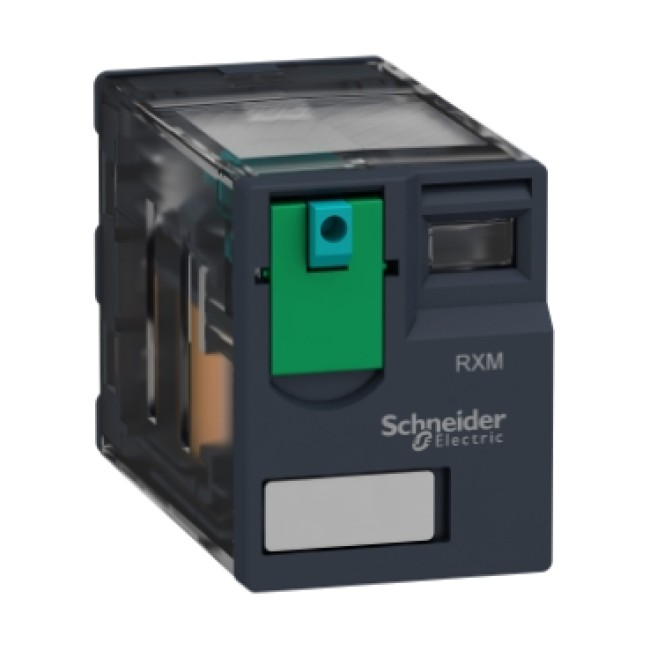

Schneider Harmony Miniature Plug-in Relay, 6A, 4 CO, Lockable Test Button, 110V DC - RXM4AB1FD
Model :RXM4AB1FD
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Harmony Miniature Plug-in Relay, 6A, 4 CO, Lockable Test Button, 110V DC - RXM4AB1FD
The Schneider Harmony Miniature Plug-in Relay (RXM4AB1FD) is a versatile and reliable component designed for various control and automation applications. With a 6A current rating and 4 changeover contacts (CO), this relay ensures efficient switching and control. It features a lockable test button, enhancing convenience during maintenance and troubleshooting. Rated for 110V DC, this relay is ideal for use in both industrial and commercial settings where precise and dependable relay operation is required.
Specifications
Product Specifications
| Main | |
|---|---|
| Range of product | Harmony Electromechanical Relays |
| Series name | Miniature |
| Product or component type | Plug-in relay |
| Device short name | RXM |
| Contacts type and composition | 4 C/O |
| [Uc] control circuit voltage | 110 V DC |
| Status LED | Without |
| Control type | Lockable test button |
| Utilisation coefficient | 20 % |
| Complementary | |
| Shape of pin | Flat |
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 2.5 kV during 1.2/50 µs |
| Contacts material | AgNi |
| [Ie] rated operational current | 3 A at 28 V (DC) NC conforming to IEC 3 A at 250 V (AC) NC conforming to IEC 6 A at 28 V (DC) NO conforming to IEC 6 A at 250 V (AC) NO conforming to IEC 6 A at 277 V (AC) conforming to UL 8 A at 30 V (DC) conforming to UL |
| Continuous output current | 5 A |
| Maximum switching voltage | 250 V conforming to IEC |
| Resistive rated load | 6 A at 250 V AC 6 A at 28 V DC |
| Maximum switching capacity | 1500 VA / 168 W |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| Average coil consumption | 0.9 W |
| Drop-out voltage threshold | >= 0.1 Uc |
| Operate time | 20 ms |
| Release time | 20 ms |
| Average coil resistance | 13440 Ohm at 20 °C ± 10 % |
| Rated operational voltage limits | 88...121 V DC |
| Safety reliability data | B10d = 100000 |
| Protection category | RT I |
| Test levels | Level A group mounting |
| Operating position | Any position |
| CAD overall height | 79 mm |
| CAD overall depth | 78.45 mm |
| Net weight | 0.037 kg |
| Device presentation | Complete product |
| Environment | |
| Dielectric strength | 1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact with basic insulation 2000 V AC between poles with basic insulation |
| Product certifications | UL Lloyd's CE CSA GOST IECEE CB Scheme |
| Standards | IEC 61810-1 CSA C22.2 No 14 UL 508 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Vibration resistance | 3 gn, amplitude = ± 1 mm (f = 10…150 Hz) 5 cycles in operation 5 gn, amplitude = ± 1 mm (f = 10…150 Hz) 5 cycles not operating |
| Shock resistance | 10 gn for in operation 30 gn for not operating |
| Pollution degree | 2 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 2.700 cm |
| Package 1 Length | 4.300 cm |
| Package 1 Weight | 36.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.000 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 12.500 cm |
| Package 2 Weight | 392.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 9.885 kg |
| Contractual warranty | 18 months |
