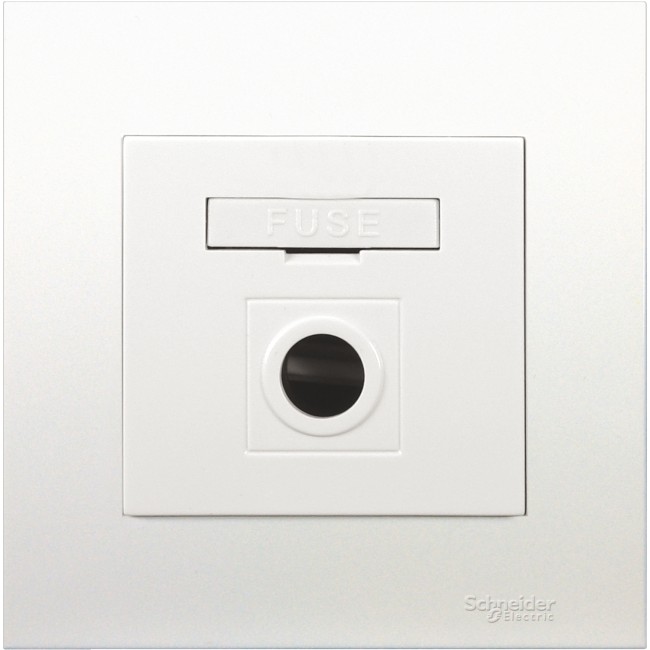

Schneider Electric Vivace fuse connection unit 13A 250V white KB30FSG
Vivace fuse connection unit 13A 250V white
Model :KB30FSG
SKU :KB30FSG
Free Delivery
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Vivace fuse connection unit 13A 250V white KB30FSG
Schneider Electric Vivace fuse connection unit 13A 250V white KB30FSG
Specifications
| Range | Vivace |
|---|---|
| Device short name | KB30 |
| Product or component type | Fuse connection unit |
| device presentation | Complete mechanism |
| Colour tint | White |
|---|---|
| Material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base |
| Projecting depth | 8 mm |
| device mounting | Surface |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Embedding depth | 35 mm |
| Rated current | 13 A at 250 V AC, resistive |
| Network frequency | 50 Hz |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Pillar terminal |
| terminal identifier | L out N out L in N in Earth |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | 2 x 4 mm² incoming 3 x 2.5 mm² incoming 1 x 1.5 mm² outgoing 1 x 2.5 mm² input |
| Width | 87 mm |
| Height | 87 mm |
| Standards | BS 1363-4 |
|---|---|
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| Environmental characteristic | Indoor use |
