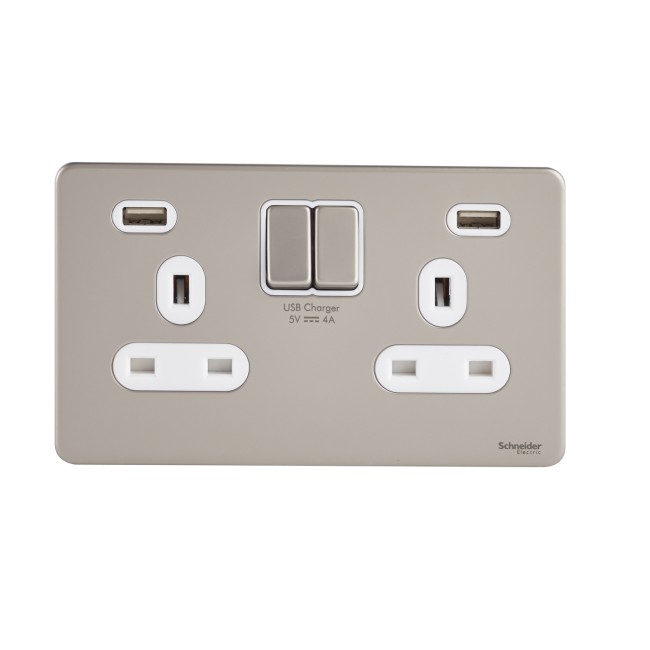

Schneider Electric Ultimate Switched Socket 2 USB charger 2 gang 13A pearl nickel white GGBGU3424DWPN
Ultimate, Switched Socket 2 USB charger 2 gang 13A pearl nickel white
Model :GGBGU3424DWPN
SKU :GGBGU3424DWPN
Free Delivery
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Ultimate Switched Socket 2 USB charger 2 gang 13A pearl nickel white GGBGU3424DWPN
Schneider Electric Ultimate Switched Socket 2 USB charger 2 gang 13A pearl nickel white GGBGU3424DWPN
High quality materials provide durability and practicality Ultra slim profile with a 1.5mm plate thickness providing a design led alternative to traditional accessories Two sets of fixing screws to accommodate differing mounting box depths In line angled terminals for easy access during installation Tamperproof front plates with a 4 point front plate secure connection Independent mechanical and electrical connection for enhanced safety
Specifications
| Range | Ultimate |
|---|---|
| aesthetic name | Screwless flat plate |
| Product or component type | Switched socket with USB charger |
| device presentation | Complete product |
| Device application | USB charger |
| Colour tint | Front plate: pearl nickel Interior: white |
| Surface finish | Metallic |
| Connections - terminals | Screw terminals |
| Switch function | 2-pole |
| Rated current | 13 A at 220...240 V AC 50/60 Hz |
| device mounting | Flush Surface |
|---|---|
| Outlet standard | BS 1363 |
| Integrated connection type | 2 socket-outlet 220...250 V AC 13 A 50/60 Hz 2 USB port 5 V DC 4 A |
| Actuator | Rocker |
| Number of gangs | 2 gangs |
| Pilot light | Silver without LED |
| Fixing mode | 2 screw: M3.5 26 mm diameter: 3.5 mm 2 screw: M3.5 32 mm diameter: 3.5 mm |
| Clamping connection capacity | 2 x 6 mm² for solid cable(s) 3 x 4 mm² for solid cable(s) 5 x 2.5 mm² for solid cable(s) 3 x 4 mm² for stranded cable(s) 5 x 2.5 mm² for stranded cable(s) |
| Socket additional information | Earthed |
| Earth circuit | Standard earth |
| Material | Stainless steel |
| Product compatibility | Mobile/tablet Apple Mobile/tablet Samsung Mobile/tablet LG Mobile/tablet Blackberry Mobile/tablet HTC Mobile/tablet Sony Mobile/tablet Huawei Technologies |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2019/1782/EC - ecodesign |
| Quality labels | CE |
| Quantity per set | Set of 1 |
| Type of packing | Box |
| Type of installation | Indoor |
| Depth | 30.5 mm |
| Width | 147.5 mm |
| Height | 87.5 mm |
| Net weight | 0.31 kg |
| IP degree of protection | IP20 |
|---|---|
| Standards | BS 1363-2 |
