Schneider Electric Switch AvatarOn 2 switches 16AX 250V 2 way Wine Gold E8332L2_WG
AvatarOn 2 switches 16AX 250V 2 way Wine Gold
Model :E8332L2_WG
SKU :E8332L2_WG
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Switch AvatarOn 2 switches 16AX 250V 2 way Wine Gold E8332L2_WG

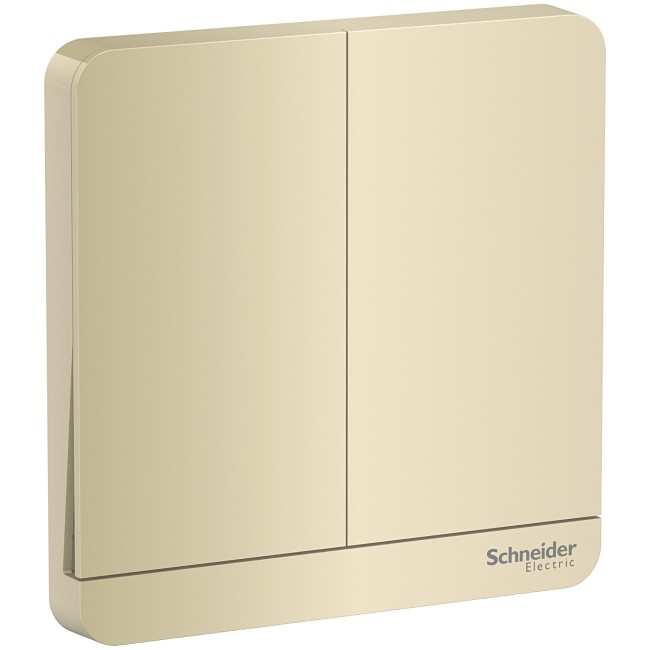

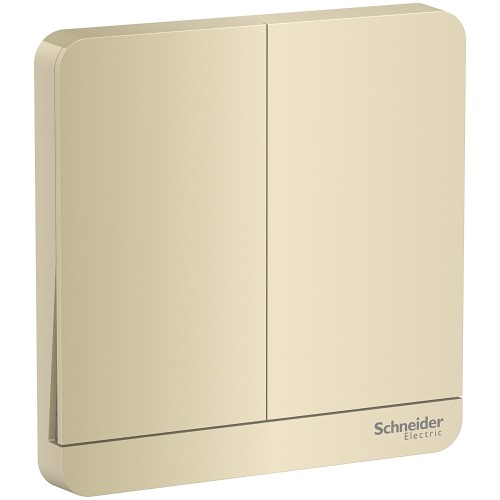

Schneider Electric Switch AvatarOn 2 switches 16AX 250V 2 way Wine Gold E8332L2_WG
Schneider Electric AvatarOn switch E8332L2_WG is a complete product in color wine gold with 2 rockers. This is a 1-pole 2-way switch. And its rated current is 16AX. It is 86 mm in width, 86 mm in height, 34.2 mm in depth, Its matching mounting box can be recessed into the surface of the wall with flush type. It reaches IP20 degree of protection too. Its connection terminals are brass terminal. Being made of polycarbonate, polycarbonate + GF 20 % material, this switch is quite reliable and resistant. And it is mercury free AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.
Specifications
| Product or component type | Switch |
|---|---|
| Device application | Control |
| Load type | Inductive Resistive Incandescent lamp Fluorescent lamp |
| Colour tint | Wine gold |
| device presentation | Complete product |
|---|---|
| Rated current | 16 AX at 250 V AC 50/60 Hz |
| Switch function | 1-pole 2-way |
| Number of gangs | 2 gangs |
| Number of rocker | 2 |
| Clamping connection capacity | 3 x 2.5 mm² for solid cable(s) 3 x 2.5 mm² for stranded cable(s) 4 x 1.5 mm² for solid cable(s) 4 x 1.5 mm² for stranded cable(s) |
| Connections - terminals | Brass terminal |
| Material | Polycarbonate: grid plate Polycarbonate: base Polycarbonate: dolly Polycarbonate: frame Polycarbonate + GF 20 %: actuator |
| device mounting | Flush Surface |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 34.2 mm |
| IP degree of protection | IP20 |
|---|---|
| Maximum ambient air temperature for operation | 45 °C |
| Operating altitude | 2000 m |
| Relative humidity | 0…95 % |
| Environmental characteristic | UV resistant |
| Standards | SS 227-1 MS IEC 60669-1 BS EN 60669-1 IEC 60669-1 |
