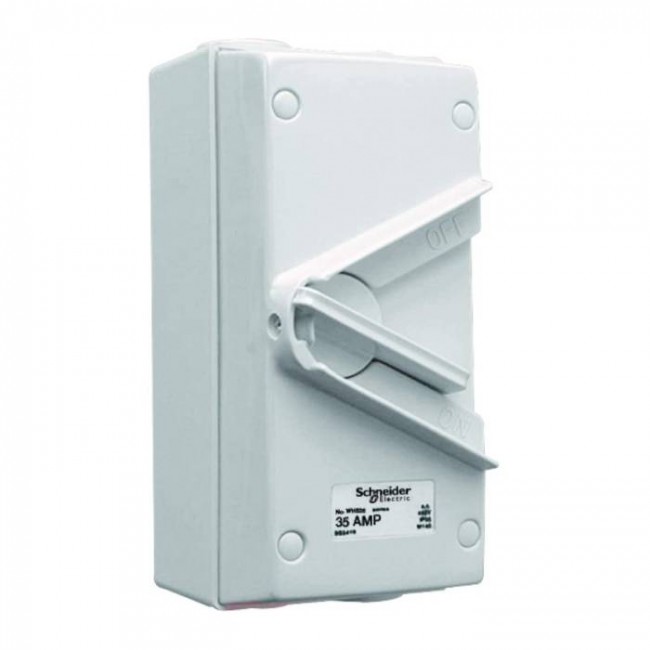

Schneider Electric Surface Mount Single Pole Isolating Switch 35A IP66 Switch WHS35
Surface Mount, Single Pole Isolating Switch, 35A IP66, WHS35
Model :WHS35
SKU :WHS35
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Surface Mount Single Pole Isolating Switch 35A IP66 Switch WHS35
Schneider Electric Surface Mount Single Pole Isolating Switch 35A IP66 Switch WHS35
This surface mount isolator is designed to be water and dustproof. The product is available in 20 & 25mm conduit entries, single, double and triple poles. This switch is ideally suited to new construction or refurbishment projects.
Specifications
| product or component type | Isolating switch | |
|---|---|---|
| device short name | W |
| [Ie] rated operational current | 35 A at 250 V AC-22A | |
|---|---|---|
| poles description | 1P | |
| Motor Rating | M220 | |
| width | 82 mm | |
| height | 170 mm | |
| depth | 90 mm |
| IP degree of protection | IP66 | |
|---|---|---|
| standards | IEC 60947-3 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | REACh Declaration | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | Yes | |
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| Environmental Disclosure | Product Environmental Profile |
| Warranty | 18 months |
|---|
