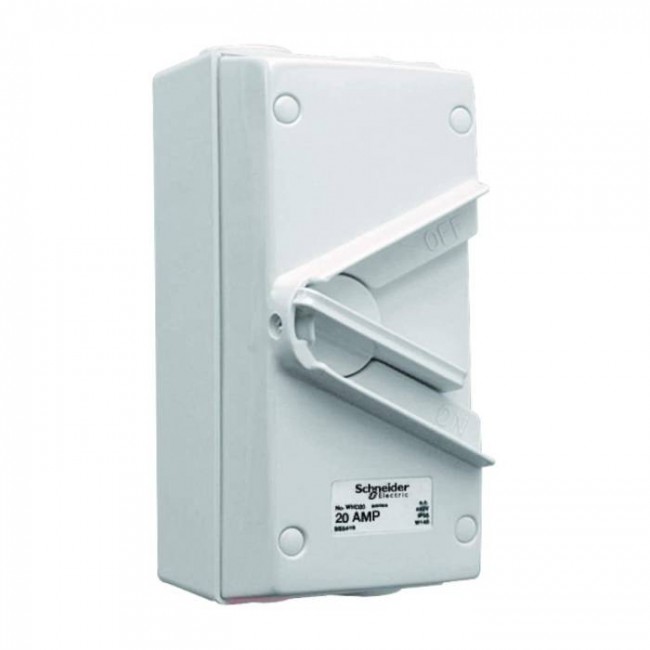

Schneider Electric Surface Mount Double Pole Isolating Switch 20A 440V IP66 Switch WHD20
Surface Mount Double Pole Isolating Switch, 20A 440V, IP66, WHD20
Model :WHD20
SKU :WHD20
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Electric Surface Mount Double Pole Isolating Switch 20A 440V IP66 Switch WHD20
Schneider Electric Surface Mount Double Pole Isolating Switch 20A 440V IP66 Switch WHD20
This surface mount isolator is designed to be water and dustproof. The product is available in 20 & 25mm conduit entries, single, double and triple poles. This switch is ideally suited to new construction or refurbishment projects.
Specifications
| product or component type | Isolating switch | |
|---|---|---|
| device short name | W |
| [Ie] rated operational current | 20 A at 440 V AC-22A | |
|---|---|---|
| poles description | 2P | |
| Motor Rating | M180 | |
| width | 82 mm | |
| height | 170 mm | |
| depth | 90 mm |
| IP degree of protection | IP66 | |
|---|---|---|
| standards | IEC 60947-3 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | REACh Declaration | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | Yes | |
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| Environmental Disclosure | Product Environmental Profile |
| Warranty | 18 months |
|---|
