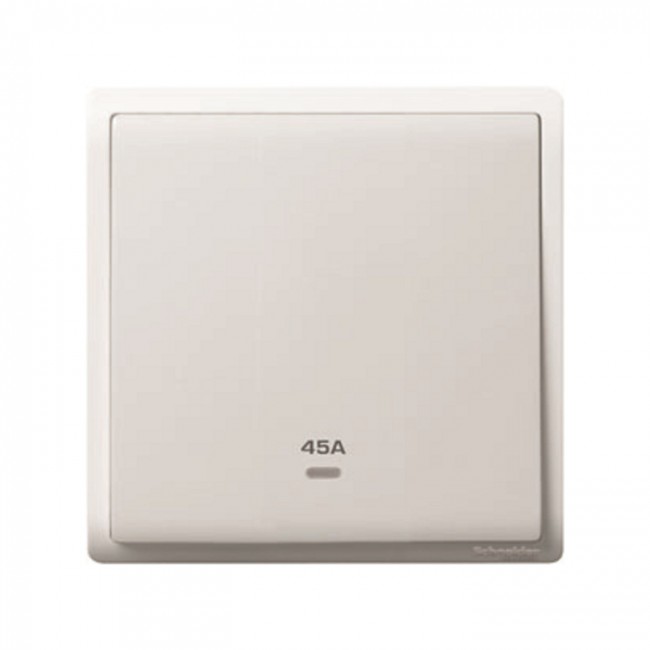

Schneider Electric Pieno Double Pole Switch 1 Gang with Neon 45A 250V E8231D45N
45A, 250V 1GANG, DOUBLE POLE SWITCH, NEON
Model :E8231D45N
SKU :E8231D45N
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Pieno Double Pole Switch 1 Gang with Neon 45A 250V E8231D45N
Schneider Electric Pieno Double Pole Switch 1 Gang with Neon 45A 250V E8231D45N
A light switch that pushes the boundaries
Known affectionately as the ‘Slim Rocker’, the Pieno concept is based on a slim profile and features a jumbo dolly. Furthermore,
this sleek range of light switches, which is based on an uncluttered design, incorporates innovative “Sure Click” technology,
offering flutter-free switching for improved durability and reliability.
Specifications
| range of product | Pieno |
|---|---|
| product or component type | Switch |
| switch application | Switch |
| rated current | 45 A at 250 V AC 50 Hz |
| local signalling | Neon |
| number of gangs | 1 gang |
| load type | Resistive Fluorescent |
| wiring device mounting | Surface Flush |
|---|---|
| material | Polycarbonate: surround Polycarbonate: grid plate |
| connections - terminals | Pillar terminals |
| clamping connection capacity | 1 x 16 mm² for solid cable(s) 1 x 10 mm² for stranded cable(s) |
| width | 87 mm |
| height | 87 mm |
| ambient air temperature for operation | -5…40 °C |
|---|---|
| relative humidity | 0…95 % |
| standards | GB 16915.1 IEC 60669-1 |
| product certifications | CCC |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 151.57 g |
| Package 1 Height | 3.29 cm |
| Package 1 width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 1.612 kg |
| Package 2 Height | 9.5 cm |
| Package 2 width | 19 cm |
| Package 2 Length | 19.5 cm |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 1600 |
| Package 3 Weight | 276640.0 g |
| Package 3 Height | 101 cm |
| Package 3 width | 84 cm |
| Package 3 Length | 102 cm |
