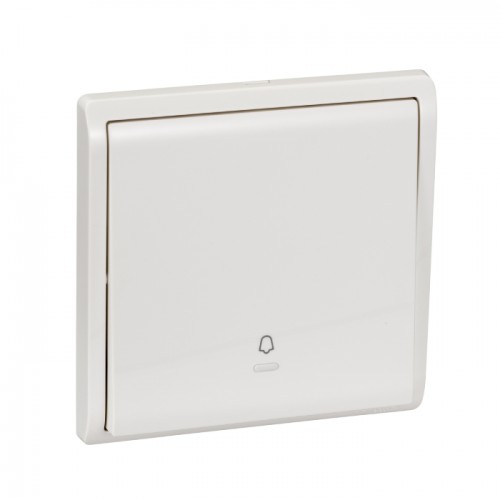

Schneider Electric Pieno Bell Press Switch 1 Gang with Fuorescent Locator 10A 250V E8231BPL1
10A, 250V, 1 GANG, BELL PRESS SWITCH
Model :E8231BPL1
SKU :E8231BPL1
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Pieno Bell Press Switch 1 Gang with Fuorescent Locator 10A 250V E8231BPL1
Schneider Electric Pieno Bell Press Switch 1 Gang with Fuorescent Locator 10A 250V E8231BPL1
A light switch that pushes the boundaries
Known affectionately as the ‘Slim Rocker’, the Pieno concept is based on a slim profile and features a jumbo dolly. Furthermore,
this sleek range of light switches, which is based on an uncluttered design, incorporates innovative “Sure Click” technology,
offering flutter-free switching for improved durability and reliability.
Specifications
| range of product | Pieno |
|---|---|
| product or component type | Switch |
| switch function | Momentary |
| switch application | Bell |
| rated current | 10 A at 250 V AC 50 Hz |
| local signalling | Fluorescent (white) |
| number of gangs | 1 gang |
| load type | Resistive |
| wiring device mounting | Flush Surface |
|---|---|
| material | Polycarbonate: surround Polycarbonate: grid plate |
| connections - terminals | Pillar terminals |
| clamping connection capacity | 2 x 1.5 mm² for stranded cable(s) 2 x 2.5 mm² for solid cable(s) |
| width | 87 mm |
| height | 87 mm |
| ambient air temperature for operation | -5…40 °C |
|---|---|
| relative humidity | 0…95 % |
| standards | IEC 60669-1 GB 16915.1 |
| product certifications | CCC |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 155.8 g |
| Package 1 Height | 3.3 cm |
| Package 1 width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 1.654 kg |
| Package 2 Height | 9.5 cm |
| Package 2 width | 19 cm |
| Package 2 Length | 19.5 cm |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 60 |
| Package 3 Weight | 10.404 kg |
| Package 3 Height | 21.5 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
