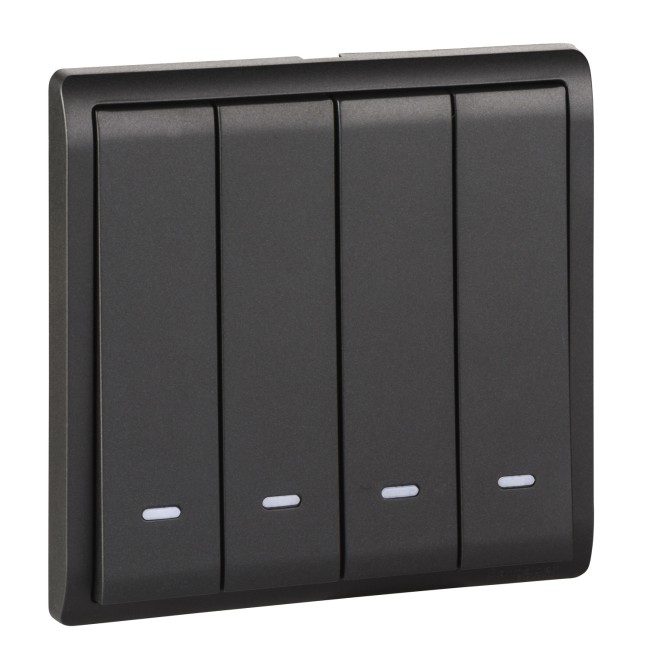

Schneider Electric Pieno 10A 250V 4 gang 2 way switch with fluorescent locator (MB) E8234L2F_MB
Pieno, 4 gang 2 way, 10A 250V
Model :E8234L2F_MB
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Pieno 10A 250V 4 gang 2 way switch with fluorescent locator (MB) E8234L2F_MB
Schneider Electric Pieno 10A 250V 4 gang 2 way switch with fluorescent locator (MB) E8234L2F_MB
Specifications
| range of product | Pieno |
|---|---|
| product or component type | Switch |
| switch function | 2-way |
| switch application | Switch |
| rated current | 10 AX at 250 V AC 50 Hz |
| local signalling | Fluorescent (white) |
| number of gangs | 4 gangs |
| load type | Resistive Fluorescent |
| Wiring device mounting | Surface Flush |
|---|---|
| material | Polycarbonate: surround Polycarbonate: grid plate |
| connections - terminals | Pillar terminals |
| clamping connection capacity | 2 x 1.5 mm² for stranded cable(s) 2 x 2.5 mm² for solid cable(s) |
| width | 87 mm |
| Height | 87 mm |
| Ambient air temperature for operation | -5…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Standards | GB 16915.1 IEC 60669-1 |
| product certifications | CCC |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.4 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 111.78 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 19.0 cm |
| Package 2 Length | 19.5 cm |
| Package 2 Weight | 1.214 kg |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 21.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 39.5 cm |
| Package 3 Weight | 7.763 kg |
