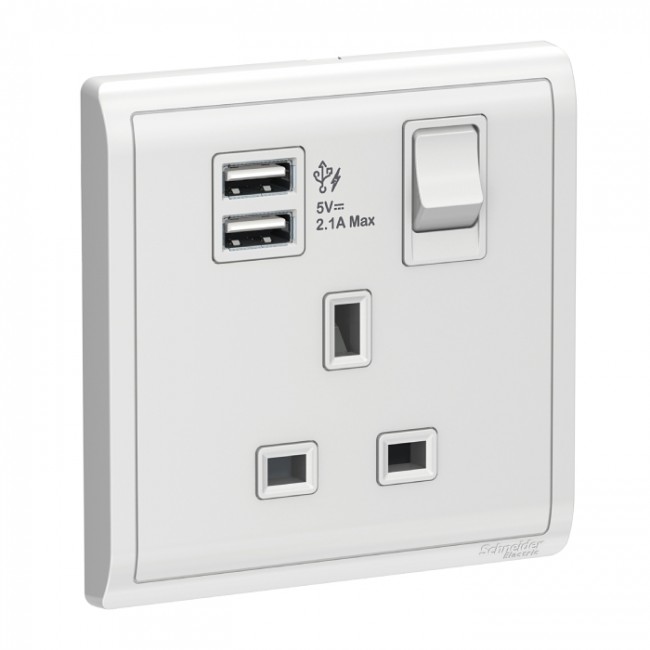

Schneider Electric Pieno 1 Gang Socket Outlet 2.1A USB 13A White E8215USB_WE
13A, 1Gang, Switch, Socket, with 2.1A USB
Model :E8215USB_WE
SKU :
Free Delivery
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Pieno 1 Gang Socket Outlet 2.1A USB 13A White E8215USB_WE
Schneider Electric Pieno 1 Gang Socket Outlet 2.1A USB 13A White E8215USB_WE
A light switch that pushes the boundaries
Known affectionately as the ‘Slim Rocker’, the Pieno concept is based on a slim profile and features a jumbo dolly. Furthermore,
this sleek range of light switches, which is based on an uncluttered design, incorporates innovative “Sure Click” technology,
offering flutter-free switching for improved durability and reliability.
Specifications
| range | Pieno |
|---|---|
| product or component type | Power socket-outlet + USB charger |
| device presentation | Mechanism |
| socket additional information | Shuttered |
| colour tint | White |
| load type | No inductive load |
| socket number | 1 |
|---|---|
| device mounting | Flush 47 mm |
| switch function | ON/OFF power-socket outlet |
| number of power socket outlets | 1 x 2P + E with shutters, British |
| rated current | Power circuit: 13 A 220...250 V, AC, 50/60 Hz |
| surface finish | Glossy |
| surface treatment | Untreated |
| number of gangs | 1 gang |
| connector type | USB type A |
| [Ue] rated operational voltage | 220...250 V AC 50/60 Hz |
| power consumption in W | 0.075 W |
| input power | 16 W |
| integrated connection type | 2 USB port 5 V DC, maximum load current: 2.1 A |
| material | Polycarbonate: grid plate Polycarbonate: cover Polycarbonate: surround Polycarbonate: dolly Nylon + GF: shutter Brass: contact plate Steel: spring Nickel steel: terminal screw |
| protection type | USB port: over temperature protection with PWM IC circuit USB port: over voltage protection against surges with PWM IC circuit USB port: overcurrent between output phases and earth (on power up only) with PWM IC circuit |
| shape of screw head | Cross |
| screwdriver shape | Philips |
| electrical connection | 3 screw terminal |
| clamping connection capacity | 1 x 4 mm² for solid cable(s) 2 x 4 mm² for stranded cable(s) 1 x 2.5 mm² 2 x 2.5 mm² |
| wire stripping length | 10…12 mm |
| mounting support | Mounting box conforming to BS 4662 |
| fixing mode | By screws M3.5 x 25 mm |
| fixing center | 60.3 mm |
| product compatibility | Apple HW Power bank Tablet PC XiaoMi Smartphone Samsung HTC |
| height | 87 mm |
| width | 87 mm |
| depth | 42.15 mm |
| embedding depth | 30.1 mm |
| net weight | 0.1064 kg |
| operating altitude | <= 2000 m |
|---|---|
| ambient air temperature for operation | 0…40 °C |
| ambient air temperature for storage | -5…60 °C |
| relative humidity | 0…95 % |
| standards | IEC 60950-1 BS 1363-2 |
| product certifications | IEC |
| IP degree of protection | IP20 |
| environmental characteristic | Liquid soap Alcohol |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 111.0 g |
| Package 1 Height | 4.3 cm |
| Package 1 width | 8.7 cm |
| Package 1 Length | 8.7 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Weight | 940.0 g |
| Package 2 Height | 9.5 cm |
| Package 2 width | 15 cm |
| Package 2 Length | 19 cm |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 80 |
| Package 3 Weight | 9.904 kg |
| Package 3 Height | 21 cm |
| Package 3 width | 31 cm |
| Package 3 Length | 50 cm |
