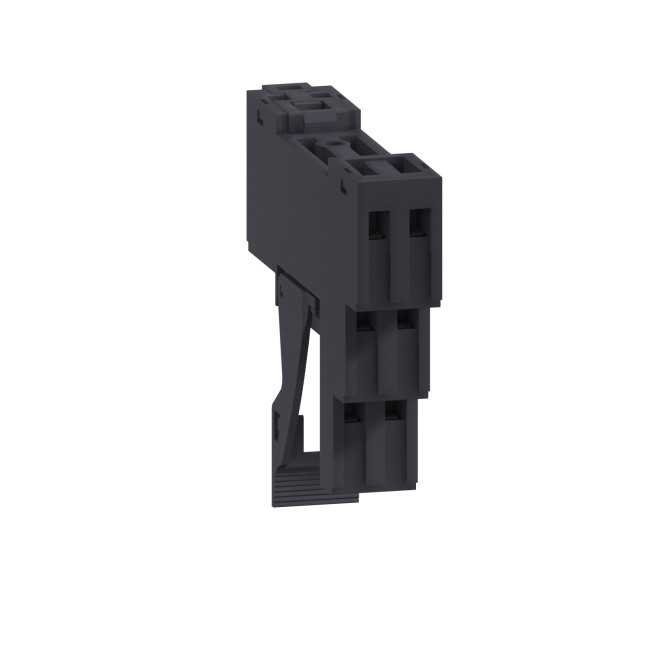

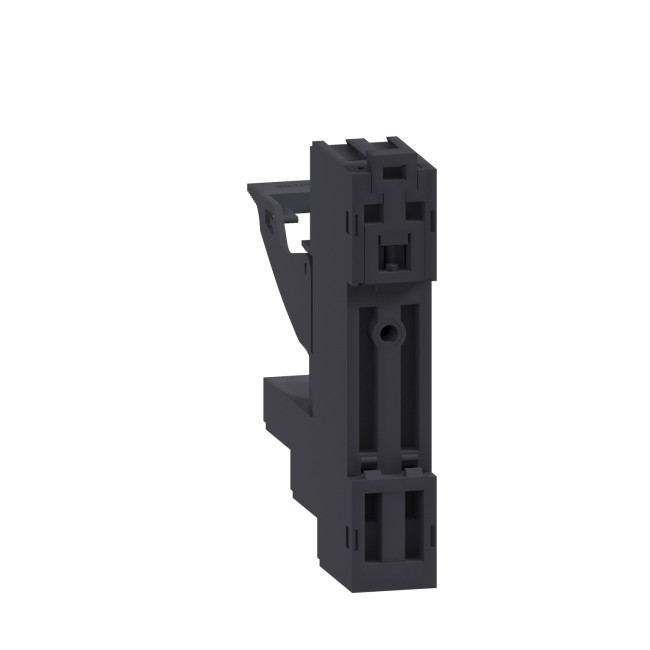

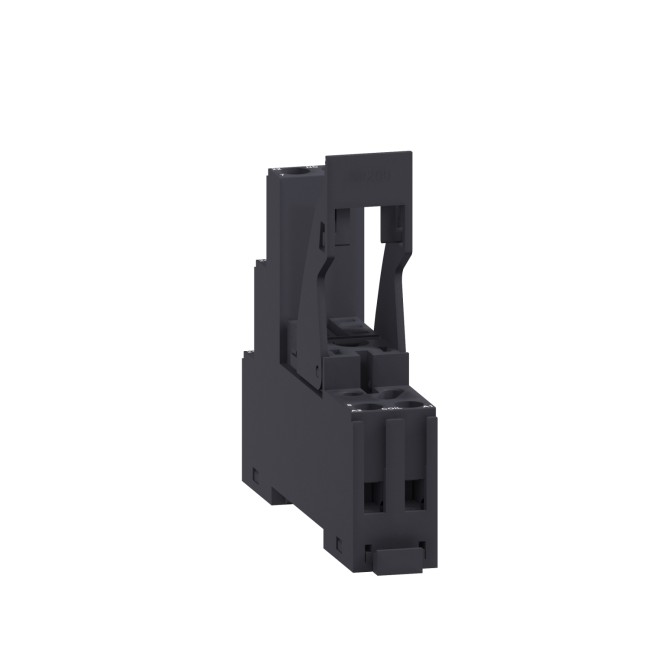

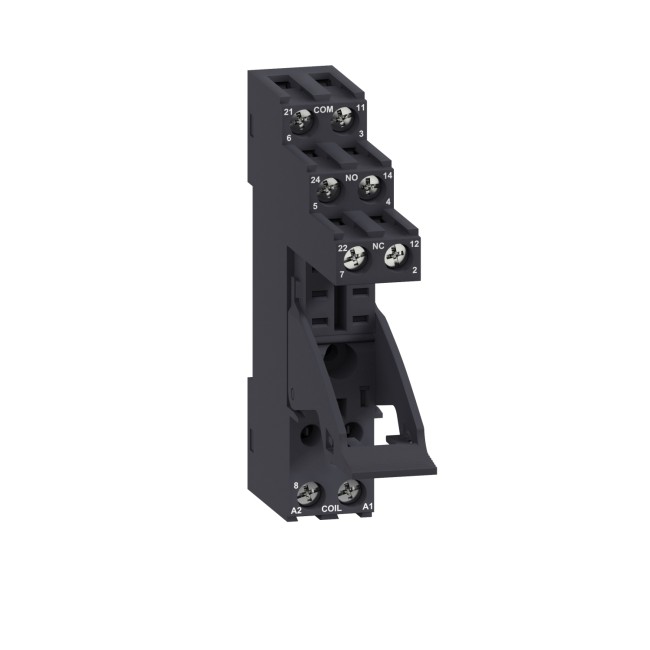

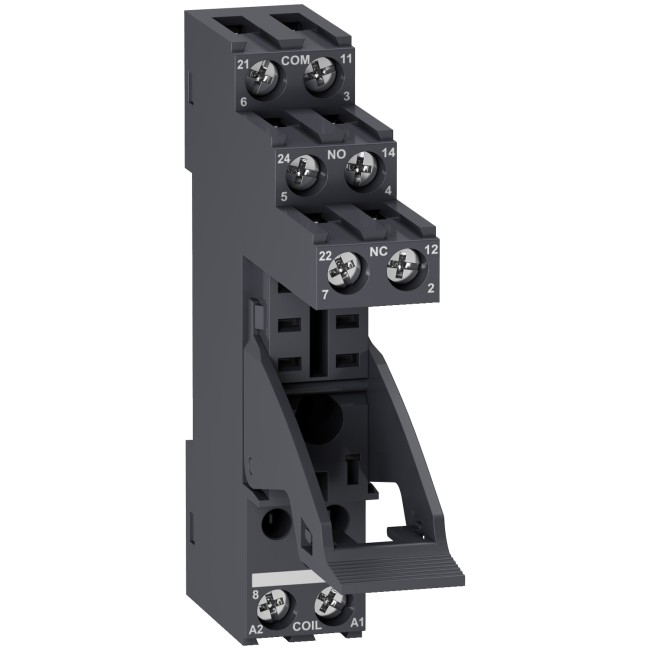

Schneider Electric Harmony Socket with clamp for RXG2 relays 5A screw connectors separate contact RGZE1S48M
Harmony Socket with clamp for RXG2 relays 5A screw connectors separate contact
Model :RGZE1S48M
SKU :RGZE1S48M
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Harmony Socket with clamp for RXG2 relays 5A screw connectors separate contact RGZE1S48M
Schneider Electric Harmony Socket with clamp for RXG2 relays 5A screw connectors separate contact RGZE1S48M
"This Harmony RGZ timing relay socket has separate contact terminals." "It enables quick and easy plug-in installation of relays without the need for tools." "It is compatible with all 2 C/O DPDT RXG relays." "Simple relay retention via clamp allows quick replacement of relays and minimizes machine downtime."
Specifications
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Product or component type | Socket |
| Contact terminal arrangement | Separate |
| Product compatibility | Plug-in relay RXG with 2 C/O contact |
|---|---|
| [Ui] rated insulation voltage | 250 V |
| [Uimp] rated impulse withstand voltage | 6 kV between coil and contact with reinforced insulation 4 kV between contacts with basic insulation 4 kV between poles with basic insulation 4 kV between terminals and DIN rail with basic insulation |
| [In] rated current | 5 A |
| [Ue] rated operational voltage | 250 V conforming to IEC 300 V conforming to UL |
| Dielectric strength | 5 kV between coil and contact with reinforced insulation 2.5 kV between contacts with basic insulation 3 kV between poles with basic insulation 3 kV between terminals and DIN rail with basic insulation |
| Connections - terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Screw terminals, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end |
| Screw type | M3 |
| Ambient air temperature for storage | -40…85 °C |
|---|---|
| Ambient air temperature for operation | -40…70 °C |
| Relative humidity | 10…85 % |
| Standards | CSA C22.2 No 14 IEC 61984 UL 508 |
| Product certifications | EAC CE CSA UL DNV-GL |
| IP degree of protection | IP20 |
| Overvoltage category | III |
| Pollution degree | 3 |
