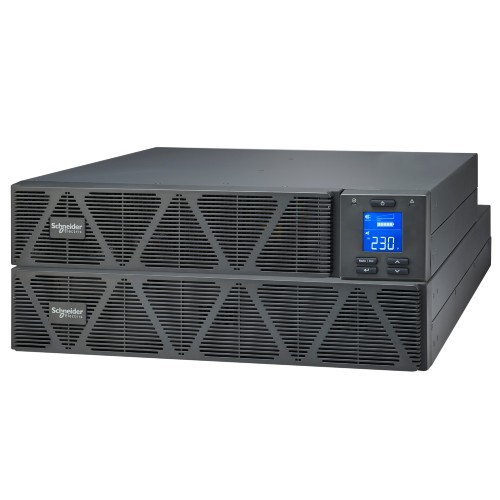

Schneider Electric Easy UPS On-Line SRVS 3000VA RM 230V with Extended Runtime Battery Pack, Rail Kit SRVS3KRILRK
3000VA RM 230V with Extended Runtime Battery Pack, Rail Kit SRVS3KRILRK
Model :SRVS3KRILRK
SKU :
Free Delivery
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Easy UPS On-Line SRVS 3000VA RM 230V with Extended Runtime Battery Pack, Rail Kit SRVS3KRILRK
Schneider Electric Easy UPS On-Line SRVS 3000VA RM 230V with Extended Runtime Battery Pack, Rail Kit SRVS3KRILRK
Specifications
| Presentation | High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. |
|---|---|
| Lead time | Usually in Stock |
| Main Input Voltage | 230 V |
|---|---|
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| rated power in W | 2400 W |
| rated power in VA | 3000 VA |
| Input Connection Type | IEC 60320 C20 |
| nb of power socket outlets | 6 IEC 60320 C13 1 IEC 60320 C19 |
| number of rack unit | 4U |
| number of cables | 1 |
| provided equipment | CD with software User manual USB cable |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| redundant | No |
| height | 17.2 cm |
|---|---|
| width | 43.7 cm |
| depth | 63.2 cm |
| net weight | 52 kg |
| mounting location | Front |
| mounting preference | Lower |
| mounting mode | Rack-mounted |
| USB compatible | No |
| mounting position | Horizontal |
| input voltage limits | 110...285 V half load 160...280 V full load |
|---|---|
| input protection type | Circuit breaker and fuse |
| network frequency | 40...70 Hz auto sensing |
| Maximum configurable power in VA | 3000 VA |
|---|---|
| Maximum configurable power in W | 2400 W |
| output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| bypass type | Internal bypass (automatic and manual) |
| crest factor | 3 : 1 |
| product certifications | CE |
|---|---|
| standards | EN/IEC 62040-1 EN/IEC 62040-2 |
| ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…95 % non-condensing |
| operating altitude | 0...3000 m |
| ambient air temperature for storage | -20…50 °C |
| storage Relative Humidity | 0…95 % Non-condensing |
| storage altitude | 0…15000 m |
| acoustic level | 50 dBA |
| Efficiency | View Efficiency Graph |
|---|---|
| battery type | Lead-acid battery |
| battery voltage | 72 V |
| number of battery filled slots | 0 |
| number of battery free slots | 0 |
| Battery recharge time | 4 h |
| battery life | 3…5 year(s) |
| battery charger power | 234 W rated |
| battery option | SRVS72RLBP-9A 1 1878 VAh SRVS72RLBP-9A 2 2817 VAh SRVS72RLBP-9A 3 3756 VAh SRVS72RLBP-9A 4 4695 VAh |
| alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|---|---|
| control panel | Multifunction LCD status and control console |
| Surge energy rate | 600 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 3 |
| Package 1 Weight | 66.8 kg |
| Package 1 Height | 48 cm |
| Package 1 width | 60 cm |
| Package 1 Length | 80 cm |
| Warranty | 2 years repair or replace |
|---|
