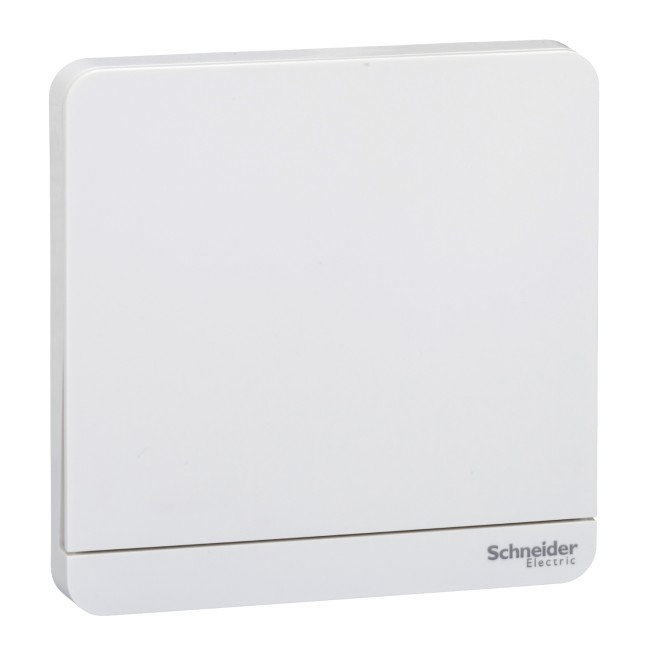

Schneider Electric AvatarOn time delay switch 4A 250V White E8331PRL1_WE
AvatarOn switch 4A 250V White E8331PRL1_WE
Model :E8331PRL1_WE
SKU :E8331PRL1_WE
Free Delivery
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric AvatarOn time delay switch 4A 250V White E8331PRL1_WE
Schneider Electric AvatarOn time delay switch 4A 250V White E8331PRL1_WE
Schneider Electric AvatarOn time delay switch E8331PRL1_WE is a complete product in color white with 1 gang and with 1 rocker. Its matching mounting box can be recessed into the surface of the wall with flush type. The fixing mode of this device is clip-in. Being made of PC (polycarbonate), brass material, this time delay switch is quite reliable and resistant. In addition, the rated operational voltage of this device is 250V. It is 86 mm in width, 86 mm in height, 34 mm in depth, with an embedding depth of 25 mm. And the product weighs 0.077 kg. The IP rating of this device is IP20. The surface finish is glossy, which ensures a bright, even an inviting finish. This time delay switch is SVHC (substances of very high concern) free too.
Specifications
| Range | AvatarOn |
|---|---|
| Product or component type | Time delay switch |
| device presentation | Complete product |
| device mounting | Flush |
|---|---|
| Number of gangs | 1 gang |
| Number of rocker | 1 |
| Actuator | Rocker |
| Fixing mode | Clip-in |
| Colour tint | White |
| Surface finish | Glossy |
| [Ie] rated operational current | Resistive: 4 A Inductive: 4 A |
| [Ue] rated operational voltage | 250 V AC 50...60 Hz |
| Clamping connection capacity | 1...4 mm² for rigid cable(s) 1...4 mm² for stranded cable(s) 1...4 mm² for flexible cable(s) |
| Wire stripping length | 12 mm |
| Material | PC (polycarbonate): base PC (polycarbonate): base cover PC (polycarbonate): grid plate PC (polycarbonate): surround PC (polycarbonate): dolly Brass: terminal cover |
| Height | 86 mm |
| Width | 86 mm |
| Depth | 34 mm |
| Embedding depth | 25 mm |
| Net weight | 0.077 kg |
| IP degree of protection | IP20 |
|---|
