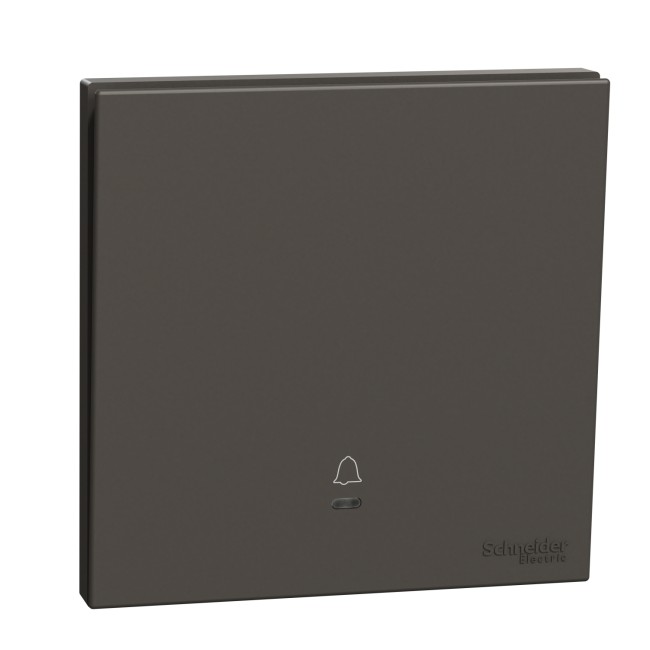

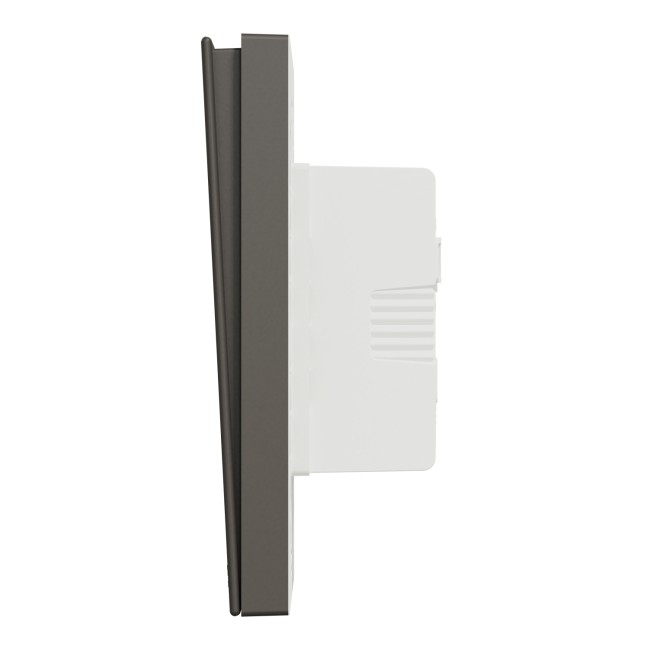

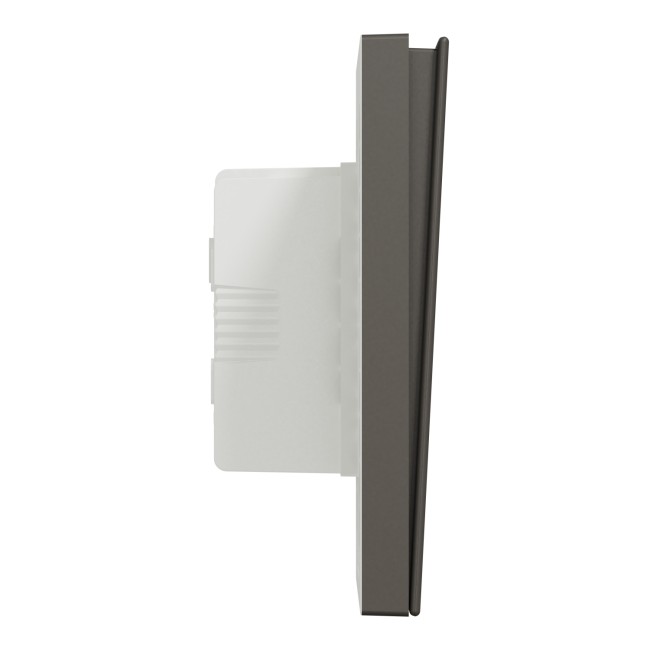

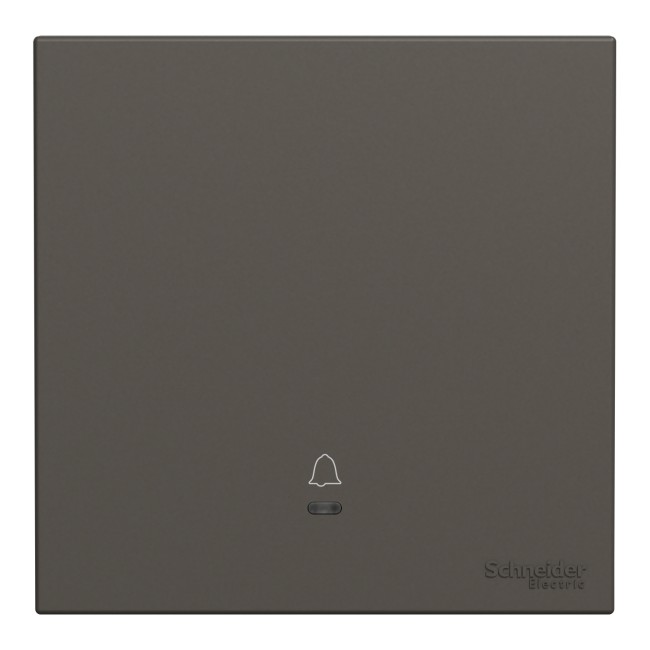

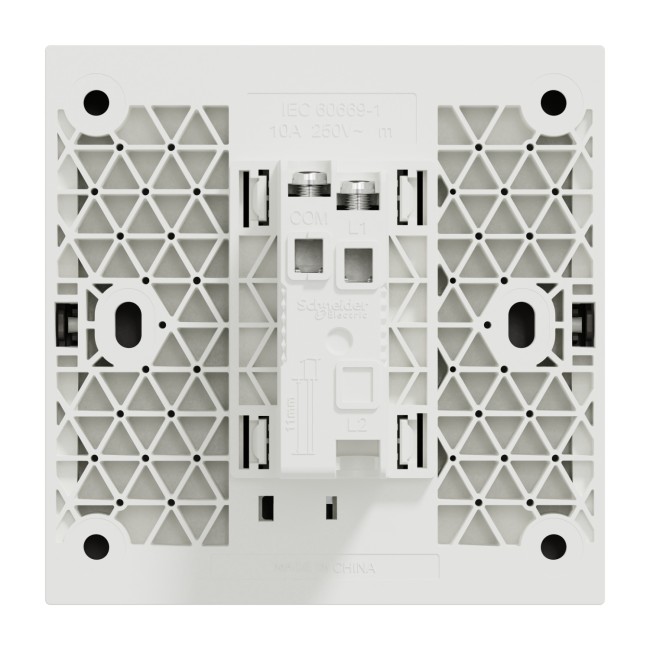

Schneider Electric AvatarOn C Bell Press Switch with Fluorecent Locator 10A 250V 1 gang dark grey E8731BP_DG
Bell Press Switch AvatarOn C 15A 250V 1 gang 3 round pin dark grey
Model :E8731BP_DG
SKU :E8731BP_DG
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric AvatarOn C Bell Press Switch with Fluorecent Locator 10A 250V 1 gang dark grey E8731BP_DG
Schneider Electric AvatarOn C Bell Press Switch with Fluorecent Locator 10A 250V 1 gang dark grey E8731BP_DG
Specifications
| Range of product | AvatarOn C |
|---|---|
| Product or component type | Bell press switch |
| Device application | Bell switch |
| Colour tint | Dark grey |
| Device presentation | Complete product |
|---|---|
| Rated current | 10 A at 250 V AC 50/60 Hz |
| Switch function | Bell push switch |
| Switch application | Bell switch |
| Number of gangs | 1 gang |
| Number of rocker | 1 |
| Connections - terminals | Screw terminal |
| Local signalling | With light indicator, fluorescent |
| Material | PC (polycarbonate) |
| Device mounting | Surface Flush |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 36.8 mm |
| Embedding depth | 23.5 mm |
| IP degree of protection | IP20 |
|---|
