Description for Schneider Electric APC Performance SurgeArrest 8 outlets 230V UK PM8-UK

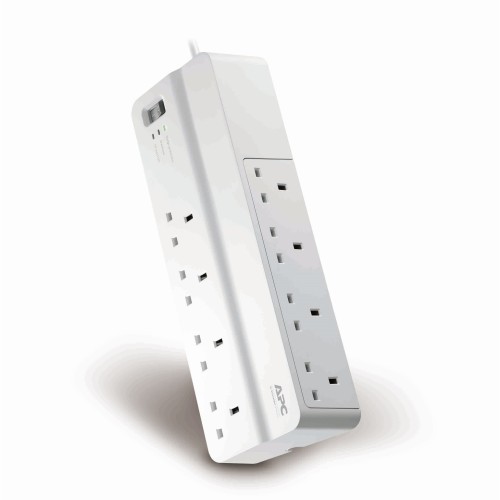

Schneider Electric APC Performance SurgeArrest 8 outlets 230V UK PM8-UK

SurgeArrest components such as MOVs and thermal fuses ensure an instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to a power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.

Specifications

---

Overview

Lead time	Usually in Stock

Main

Main Input Voltage	230 V
plug standard	BS1363A British
cable length	2.00 m
number of cables	1
provided equipment	User manual

Physical

colour	White
height	6.17 cm
width	32.65 cm
depth	11.03 cm
net weight	0.91 kg
mounting preference	No preference
mounting mode	Not rack-mountable

Input

network frequency	50 Hz +/- 5 Hz
maximum input current	13 A
switching current capacity	13 A

Output

number of power socket outlets	8
Outlet standard	BS 1363 United Kingdom

Conformance

product certifications	CE
equipment protection policy	Lifetime : 50000 euros

Environmental

ambient air temperature for operation	0…40 °C
relative humidity	0…90 %
operating altitude	0...10000 ft
ambient air temperature for storage	-5…40 °C
storage Relative Humidity	0…95 % Non-condensing
storage altitude	0.00…4572.00 m

Surge Protection and Filtering

Common mode rejection	60 dB
peak current	48 kA common mode 60 kA normal mode
Surge energy rate	2754 J

Packing Units

Package 1 Weight	1.05 kg
Package 1 Height	36.5 cm
Package 1 width	17 cm
Package 1 Length	6.4 cm
SCC14	10731304313592
Number of Units in Package 2	6
Package 2 Weight	6.59 kg
Package 2 Height	365.25 mm
Package 2 width	212.85 mm
Package 2 Length	387.35 mm
Number of Units in Package 3	156

Contractual warranty

Warranty	Limited Lifetime (European Union countries only)

REACh Regulation

REACh Declaration

EU RoHS Directive

Compliant

EU RoHS Declaration

Environmental Disclosure

Product Environmental Profile

WEEE

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Circularity Profile

End of Life Information
