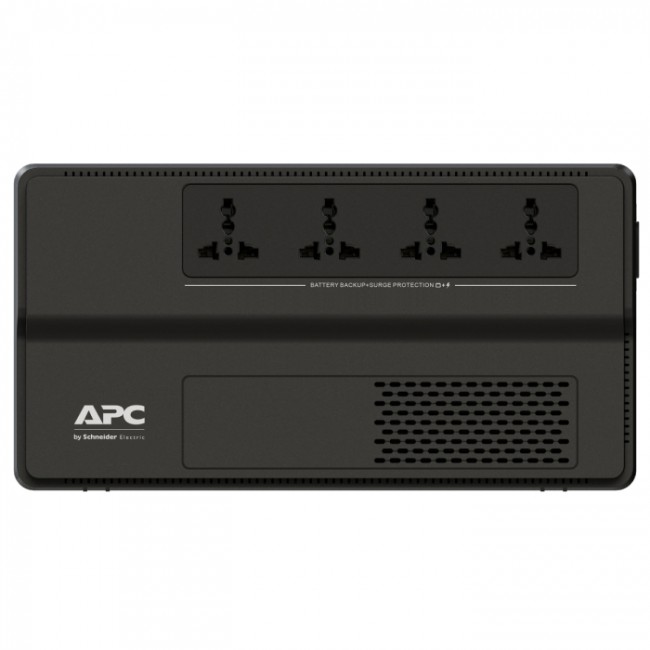

Schneider Electric APC Easy UPS BV 800VA AVR Universal Outlet 230V BV800I-MSX
- Condition: New
Description for Schneider Electric APC Easy UPS BV 800VA AVR Universal Outlet 230V BV800I-MSX
Schneider Electric APC Easy UPS BV 800VA AVR Universal Outlet 230V BV800I-MSX
Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical momentsFEATURES:
Boost Automatic Voltage Regulation (AVR)
preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Sleek design:
Slim, modern designs can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Cold-start capable
It provides temporary battery power when the utility power is out.
Advanced Safety Features:
Safeguard your home UPS from overloads, excessive mains voltages, short circuits, installation mishaps, and battery damage due to low voltage situations.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Battery failure notification
It provides early-warning fault analysis on batteries, enabling timely preventive maintenance.
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge-protected outlets
Back up and protect your hardware and data during power outages, surges, and spikes.
Audible alarms
It provides notification of changing utility power and UPS power conditions.
LED Indicators
This provides an easy-to-read status of the unit and utility power conditions.
FEATURES:
Boost Automatic Voltage Regulation (AVR)
preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Sleek design:
Slim, modern designs can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Cold-start capable
It provides temporary battery power when the utility power is out.
Advanced Safety Features:
Safeguard your home UPS from overloads, excessive mains voltages, short circuits, installation mishaps, and battery damage due to low voltage situations.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Battery failure notification
It provides early-warning fault analysis on batteries, enabling timely preventive maintenance.
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge-protected outlets
Back up and protect your hardware and data during power outages, surges, and spikes.
Audible alarms
It provides notification of changing utility power and UPS power conditions.
LED Indicators
This provides an easy-to-read status of the unit and utility power conditions.
Specifications
Lead time | Usually in Stock |
---|
input voltage | 230 V |
---|---|
Main Output Voltage | 230 V |
rated power in W | 450 W |
rated power in VA | 800 VA |
Input Connection Type | BS1363A British |
nb of power socket outlets | 4 universal receptacle |
cable length | 1.50 m |
number of cables | 1 |
battery type | Lead-acid battery |
provided equipment | User manual |
Number of power module free slots | 0 |
---|---|
Number of power module filled slots | 0 |
redundant | No |
UPS size | WS |
colour | Black |
---|---|
height | 9.25 cm |
width | 16.05 cm |
depth | 30.5 cm |
net weight | 5.3 kg |
mounting preference | No preference |
mounting mode | Not rack-mountable |
two post mountable | 0 |
USB compatible | No |
network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
---|---|
input voltage limits | 170...280 V |
Maximum configurable power in W | 450 W |
---|---|
output frequency | 50/60 Hz +/- 1 Hz unsynchronised |
UPS type | Line interactive |
Wave type | Stepped approximation to a sinewave |
graph display | 1 |
Maximum configurable power in VA | 800 VA |
Transfer time | 6 ms typical : 10 ms maximum |
product certifications | CE |
---|
ambient air temperature for operation | 0…40 °C |
---|---|
relative humidity | 0…90 % |
operating altitude | 0...6667 ft |
ambient air temperature for storage | -20…50 °C |
storage Relative Humidity | 0…90 % |
storage altitude | 0.00…15240.00 m |
acoustic level | 40 dBA |
IP degree of protection | IP20 |
Efficiency | View Efficiency Graph |
---|---|
number of battery filled slots | 0 |
number of battery free slots | 0 |
battery life | 3…5 year(s) |
extended runtime | 0 |
control panel | LED Status display with on line : on battery |
---|---|
alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge energy rate | 156 J |
---|
Package 1 Weight | 5.6 kg |
---|---|
Package 1 Height | 23.7 cm |
Package 1 width | 14.3 cm |
Package 1 Length | 37.3 cm |
SCC14 | 10731304344084 |
Warranty | 2 years repair or replace |
---|
