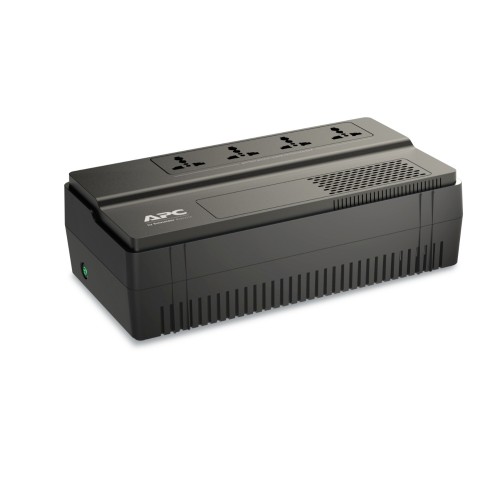

Schneider Electric APC Easy UPS BV 650VA AVR 230V Universal Outlet BV650I-MSX
- Condition: New
Description for Schneider Electric APC Easy UPS BV 650VA AVR 230V Universal Outlet BV650I-MSX
Schneider Electric APC Easy UPS BV 650VA AVR 230V Universal Outlet
FEATURES:
Boost Automatic Voltage Regulation (AVR)
preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Sleek design:
Slim, modern designs can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Cold-start capable
It provides temporary battery power when the utility power is out.
Advanced Safety Features:
Safeguard your home UPS from overloads, excessive mains voltages, short circuits, installation mishaps, and battery damage due to low voltage situations.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Battery failure notification
It provides early-warning fault analysis on batteries, enabling timely preventive maintenance.
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge-protected outlets
Back up and protect your hardware and data during power outages, surges, and spikes.
Audible alarms
It provides notification of changing utility power and UPS power conditions.
LED Indicators
This provides an easy-to-read status of the unit and utility power conditions.
Specifications
Lead time | Usually in Stock |
---|
provided equipment | User manual |
---|---|
Number of power module free slots | 0 |
Number of power module filled slots | 0 |
redundant | No |
UPS size | WS |
cable length | 1.50 m |
---|---|
colour | Black |
depth | 30.5 cm |
height | 9.25 cm |
mounting preference | No preference |
product weight | 4.5 kg |
mounting mode | Not rack-mountable |
two post mountable | 0 |
USB compatible | No |
width | 16.5 cm |
network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
---|---|
plug standard | BS1363A British |
input voltage limits | 170...280 V |
number of cables | 1 |
input voltage | 230 V |
rated power in W | 375 W |
---|---|
Maximum configurable power in W | 375 W |
output frequency | 50/60 Hz +/- 1 Hz unsynchronised |
UPS type | Line interactive |
Wave type | Stepped approximation to a sinewave |
nb of power socket outlets | 4 universal receptacle |
curve equation | Efficiency |
curve fixed loss | 0.0294 |
curve load maximum | 100 % |
curve load minimum | 3 % |
curve proportional loss | 0 |
curve square loss | 0.0021 |
curve X-axis maximum | 100 % |
curve test cond ID | Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 230V/50Hz electrical input and balanced resistive load (PF = |
curve X-axis minimum | 0 % |
curve X-axis title | Load |
curve X-axis units | Percentage |
curve Y-axis maximum | 100 % |
curve Y-axis minimum | 50 % |
curve Y-axis title | Efficiency |
curve Y-axis units | Percentage |
graph display | 1 |
output voltage | 230 V |
Maximum configurable power in VA | 650 VA |
rated power in VA | 650 VA |
Transfer time | 6 ms typical : 10 ms maximum |
product certifications | CE |
---|
ambient air temperature for operation | 0…40 °C |
---|---|
relative humidity | 0…90 % |
operating altitude | 0...6667 ft |
ambient air temperature for storage | -20…50 °C |
storage altitude | 0.00…15240.00 m |
acoustic level | 40 dBA |
show note OP temperature | No |
IP degree of protection | IP20 |
battery type | Lead-acid battery |
---|---|
number of battery filled slots | 0 |
number of battery free slots | 0 |
liquid value | 0 |
battery curve | B |
battery life | 3…5 year(s) |
extended runtime | 0 |
control panel | LED Status display with on line : on battery |
---|---|
alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge energy rate | 156 J |
---|
Package 1 Weight | 4.8 kg |
---|---|
Package 1 Height | 23.7 cm |
Package 1 width | 14.3 cm |
Package 1 Length | 37.3 cm |
SCC14 | 10731304344077 |
Sustainable offer status | Green Premium product |
---|---|
REACh Regulation | REACh Declaration |
EU RoHS Directive | Compliant EU RoHS Declaration |
