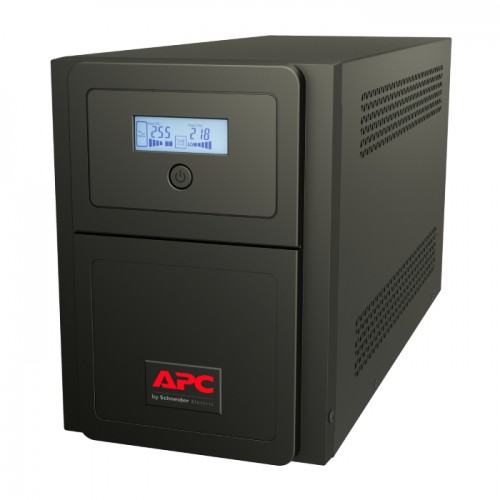

Schneider Electric APC Easy UPS SMV 1500VA 230V Universal Outlet UK Power Cord 1050W Rated Power UPS SMV1500AI-MSX
APC Easy UPS Line-interactive SMV 1500VA 230V, Universal Outlet
Model :SMV1500AI-MSX
SKU :SMV1500AI-MSX
Free Delivery
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric APC Easy UPS SMV 1500VA 230V Universal Outlet UK Power Cord 1050W Rated Power UPS SMV1500AI-MSX
Schneider Electric APC Easy UPS SMV 1500VA 230V Universal Outlet UK Power Cord 1050W Rated Power UPS SMV1500AI-MSX
Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
Includes:
Documentation CD, USB cable, User manual
Automatic Voltage Regulation (AVR)
It automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Cold-start capable
It provides temporary battery power when the utility power is out.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Pure sine wave output on the battery
It simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Specifications
| Presentation | For small to medium businesses, Easy UPS 1 Ph On-Line provides essential power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments. |
|---|---|
| Lead time | Usually in Stock |
| provided equipment | Basic UPS signalling RS-232 cable CD with software User manual USB cable |
|---|---|
| max runtime | 4 min |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| redundant | No |
| UPS size | WS |
| cable length | 1.50 m |
|---|---|
| colour | Black |
| depth | 28.8 cm |
| height | 22.3 cm |
| product weight | 9.3 kg |
| mounting mode | Not rack-mountable |
| USB compatible | Yes |
| width | 14.5 cm |
| network frequency | 40...70 Hz |
|---|---|
| plug standard | IEC 60320 C14 |
| input voltage limits | 110...285 V half load 160...280 V full load |
| inputvolt_other | 220 V 240 V |
| number of cables | 1 |
| input voltage | 230 V |
| rated power in W | 800 W |
|---|---|
| Maximum configurable power in W | 800 W |
| output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Output voltage | 220 V 240 V |
| crest factor | 3 : 1 |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| nb of power socket outlets | 3 IEC 60320 C13 |
| bypass type | Internal bypass (automatic and manual) |
| efficiency | 88 % (full load) |
| output voltage | 230 V |
| Maximum configurable power in VA | 1000 VA |
| rated power in VA | 1000 VA |
| product certifications | CE |
|---|---|
| standards | EN/IEC 62040-1 EN/IEC 62040-2 |
| ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…95 % non-condensing |
| operating altitude | 0...3000 m |
| ambient air temperature for storage | -20…50 °C |
| storage Relative Humidity | 0…95 % Non-condensing |
| storage altitude | 0…15000 m |
| acoustic level | 50 dB |
| show note OP temperature | No |
| IP degree of protection | IP20 |
| battery type | Lead-acid battery |
|---|---|
| number of battery filled slots | 1 |
| number of battery free slots | 0 |
| Battery recharge time | 4 h |
| additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| battery voltage | 24 V |
| battery charger power | 38 W rated |
| Battery power in VAH | 152 VAh runtime |
| battery life | 3…5 year(s) |
| free slots | 1 |
|---|---|
| control panel | Multifunction LCD status and control console |
| alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 600 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 10.6 kg |
| Package 1 Height | 33 cm |
| Package 1 width | 23.5 cm |
| Package 1 Length | 36.5 cm |
| Warranty | 2 years repair or replace |
|---|
