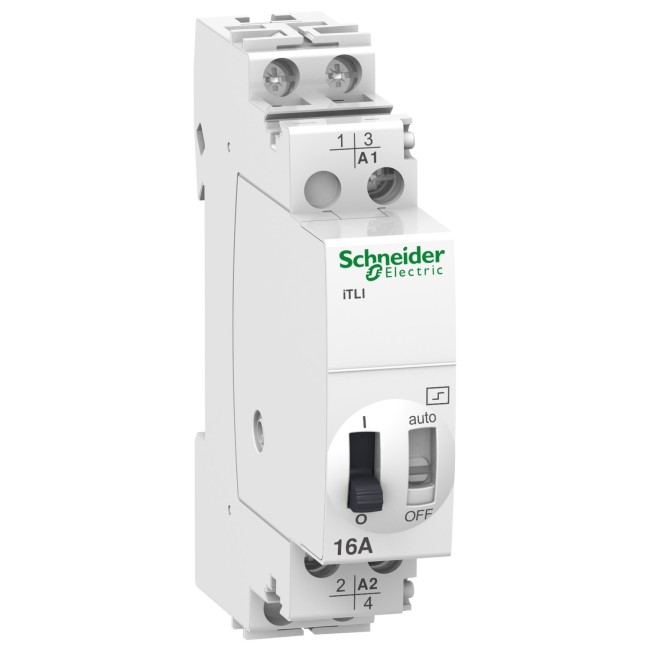

Schneider Electric Acti9 iTLI impulse relay 2P 1NO 1NC 16A coil 12VDC 24VAC 50/60Hz A9C30115
Acti9 iTLI impulse relay 2P 1NO+1NC 16A coil 12VDC 24VAC 50/60Hz
Model :A9C30115
SKU :A9C30115
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Acti9 iTLI impulse relay 2P 1NO 1NC 16A coil 12VDC 24VAC 50/60Hz A9C30115
Schneider Electric Acti9 iTLI impulse relay 2P 1NO+1NC 16A coil 12VDC 24VAC 50/60Hz A9C30115
This Acti9 iTLi is a modular impulse relay. It is a changeover contact with 1 normally open and 1 normally close contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 24VAC or 12VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.
Specifications
| range of product | Acti9 |
|---|---|
| Product name | Acti9 iTL |
| Product or component type | Impulse relay |
| Device short name | ITLi |
| Device application | Changeover relay |
| Poles | 2P |
| Pole contact composition | 1 NO + 1 NC |
| [In] rated current | 16 A |
| Network type | AC |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz 12 V DC |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| Control type | Remote and manual control Coil deconnection |
| Control signal type | Impulse |
| Switching frequency | 5 switching operations/minute 100 switching operations/day |
| Impulse duration | 50 ms...1 s |
| Remote control type | Illuminated push-button 3 mA |
| Local signalling | ON/OFF indication |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 84 mm |
| Width | 18 mm |
| Depth | 60 mm |
| Electrical durability | AC-21: 200000 cycles AC-22: 100000 cycles |
| Connections - terminals | Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid with cable end Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid with cable end Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible with ferrule |
| Wire stripping length | 11 mm |
| Tightening torque | 1 N.m |
| Range compatibility | Acti 9 iATEt Acti 9 iATLc Acti 9 iATLc+s Acti 9 iATLm Acti 9 iATLs Acti 9 iETL iTL 16 Acti 9 iATLc+c |
| Standards | EN 669-2-2 EN 669-1 |
|---|---|
| Product certifications | GOST CCC |
| Quality labels | CEBEC NF IMQ VDE KEMA |
| Noise level | 60 dB |
| IP degree of protection | IP20 conforming to IEC 60529 (on opening) IP40 conforming to IEC 60529 (in enclosure) |
| Pollution degree | 3 |
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -20…50 °C |
| Ambient air temperature for storage | -40…70 °C |
