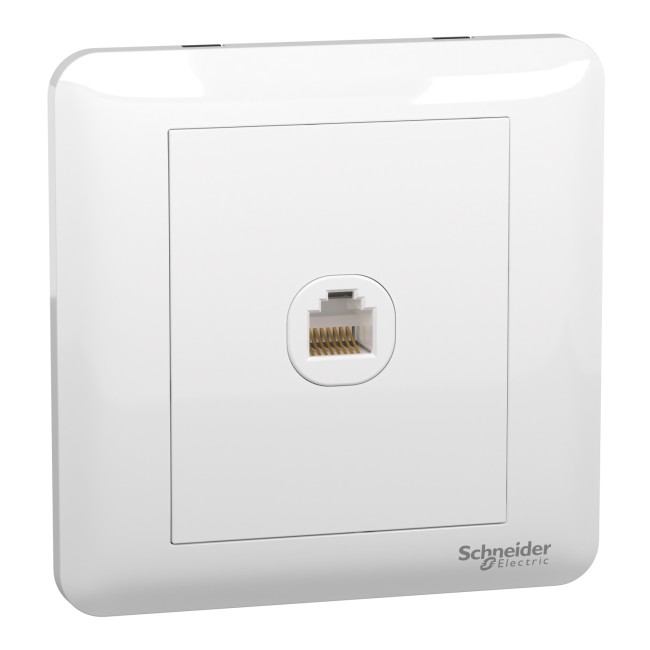

Schneider Data Socket, Category 6, 1 Gang, Affle, White A3G31RJ6_WE
Model :A3G31RJ6_WE
SKU :A3G31RJ6_WE
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Data Socket, Category 6, 1 Gang, Affle, White A3G31RJ6_WE
Specifications
| Range | Affle Plus |
|---|---|
| Product or component type | Data socket |
| Colour tint | White |
| device mounting | Flush |
|---|---|
| Communication network category | Data: 6 |
| Rated current | 1.5 A |
| Number of gangs | 1 gang |
| Material | Polycarbonate: plastic part |
| Contacts material | Housing: PC Contact: phosphor bronze with gold plating |
| Contact resistance | 1 µOhm |
| Insulation resistance | >= 200 mOhm |
| AWG gauge | AWG 26...AWG 22 (4 twisted pair cables) |
| Minimum return loss | 23 dB |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 33.5 mm |
| Dielectric strength | 1000 V for 60 s at 60 Hz |
|---|---|
| Environmental characteristic | UV resistant |
| Maximum ambient air temperature for operation | 35 °C |
| Relative humidity | 0…95 % |
| Standards | IEC 60670-1 BS 5733 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.5 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 40 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 390 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 21 cm |
| Package 3 Width | 39.9 cm |
| Package 3 Length | 46.9 cm |
| Package 3 Weight | 5.335 kg |
