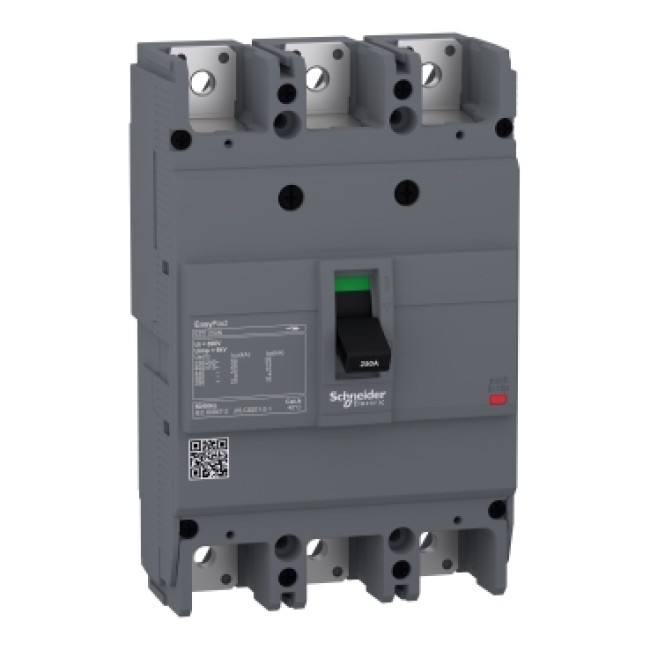

Schneider Circuit Breaker EasyPact EZC250N - TMD - 150A - 3 Poles 3D - EZC250N3150
Model :EZC250N3150
SKU :
Free Delivery
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Circuit Breaker EasyPact EZC250N - TMD - 150A - 3 Poles 3D - EZC250N3150
The Schneider EasyPact EZC250N Circuit Breaker is a reliable and efficient solution for safeguarding electrical circuits in industrial and commercial environments. Featuring a Thermal-Magnetic (TMD) trip unit, this circuit breaker is rated at 150A, ensuring accurate protection against overloads and short circuits. With a 3-pole, 3D configuration, it offers comprehensive coverage for three-phase systems, optimizing safety and performance. The EasyPact EZC250N series is known for its robustness, durability, and ease of installation, making it an excellent choice for demanding applications.
Specifications
EasyPact EZC250N Circuit Breaker
| Main | |
|---|---|
| Range of Product | EasyPact |
| Product or Component Type | Circuit Breaker |
| Device Short Name | Easypact EZC250N |
| Circuit Breaker Name | Easypact EZC250N |
| Device Application | Distribution |
| Poles Description | 3P |
| Protected Poles Description | 3t |
| Network Type | DC, AC |
| Network Frequency | 50/60 Hz |
| [In] Rated Current | 150 A at 40 °C |
| [Ui] Rated Insulation Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947-2 |
| [Ue] Rated Operational Voltage | 550 V AC 50/60 Hz conforming to IEC 60947-2, 250 V DC conforming to IEC 60947-2 |
| Breaking Capacity Code | N |
| Breaking Capacity |
20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 125 V DC 1P conforming to IEC 60947-2 20 kA Icu at 250 V DC 2P conforming to IEC 60947-2 25 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] Rated Service Breaking Capacity |
10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 125 V DC conforming to IEC 60947-2 10 kA at 250 V DC conforming to IEC 60947-2 25 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2 4 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2 12.5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2 12.5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Suitability for Isolation | Yes conforming to IEC 60947-2 |
| Utilisation Category | Category A |
| Trip Unit Name | TM-D |
| Trip Unit Technology | Thermal-magnetic |
| Trip Unit Rating | 150 A at 50 °C |
| Protection Type | Short-circuit protection, Overload protection |
| Pollution Degree | 3 conforming to IEC 60664-1, 3 conforming to IEC 947-1 |
| Complementary | |
| Control Type | Toggle |
| Mounting Mode | Fixed |
| Mounting Support | Backplate |
| Upside Connection | Front |
| Downside Connection | Front |
| Mechanical Durability | 10000 cycles |
| Electrical Durability | Category A: 5000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Connection Pitch | 35 mm |
| Local Signalling | Positive contact indication |
| Neutral Protection Setting | Without protection |
| Earth-leakage Protection | Without |
| Height | 165 mm |
| Width | 105 mm |
| Depth | 60 mm |
| Environment | |
| Standards | GB/T 14048.2, EN/IEC 60947-1, EN/IEC 60947-2 |
| IP Degree of Protection | IP20 conforming to IEC 60529 |
| IK Degree of Protection | IK07 conforming to IEC 62262 |
| Ambient Air Temperature for Operation | -25…70 °C |
| Ambient Air Temperature for Storage | -35…85 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.900 cm |
| Package 1 Width | 11.600 cm |
| Package 1 Length | 18.100 cm |
| Package 1 Weight | 1.587 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 13.607 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 64 |
| Package 3 Height | 50.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 120.856 kg |
| Contractual Warranty | |
| Warranty | 18 months |
