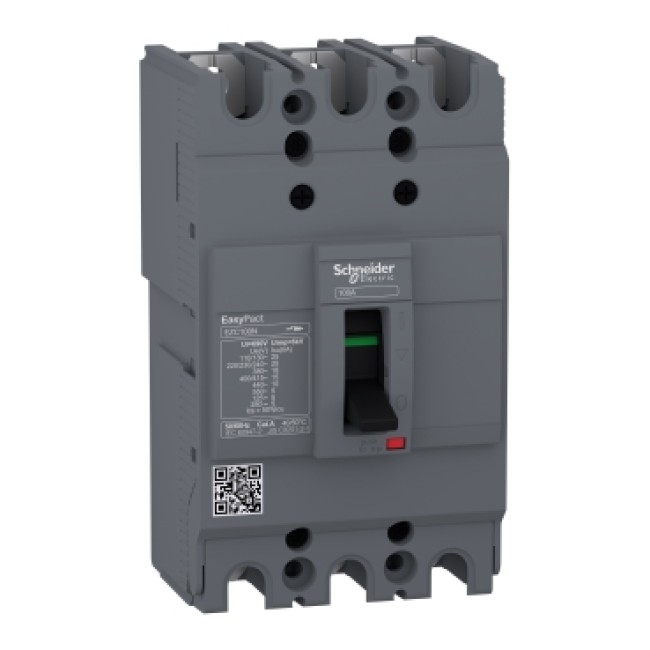

Schneider Circuit Breaker Easypact EZC100N - TMD - 50 A - 3 Poles 3d - EZC100N3050
Model :EZC100N3050
SKU :
Free Delivery
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Circuit Breaker Easypact EZC100N - TMD - 50 A - 3 Poles 3d - EZC100N3050
The Schneider Easypact EZC100N EZC100N3050 is a reliable and cost-effective molded case circuit breaker (MCCB) designed to provide superior protection for electrical systems. Rated at 50A, this 3-pole circuit breaker features Thermal Magnetic (TMD) trip technology, ensuring precise response to both overloads and short circuits. Its compact and robust design makes it an ideal choice for a wide range of applications in residential, commercial, and industrial environments. The Easypact EZC100N series is engineered for durability and consistent performance, meeting international standards for safety and reliability.
Specifications
Schneider Easypact EZC100N 50A 3P Circuit Breaker
| Main | |
|---|---|
| Range of Product | EasyPact |
| Product or Component Type | Circuit Breaker |
| Device Short Name | Easypact EZC100N |
| Circuit Breaker Name | Easypact EZC100N |
| Device Application | Distribution |
| Poles Description | 3P |
| Protected Poles Description | 3t |
| Network Type | DC, AC |
| Network Frequency | 50/60 Hz |
| [In] Rated Current | 50 A at 40 °C |
| [Ui] Rated Insulation Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947-2 |
| [Ue] Rated Operational Voltage | 550 V AC 50/60 Hz conforming to IEC 60947-2 250 V DC conforming to IEC 60947-2 |
| Breaking Capacity Code | N |
| Breaking Capacity |
10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2 18 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 5 kA Icu at 125 V DC 1P conforming to IEC 60947-2 5 kA Icu at 250 V DC 2P conforming to IEC 60947-2 5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] Rated Service Breaking Capacity |
5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 9 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2 12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2 12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2 2.5 kA at 125 V DC conforming to IEC 60947-2 2.5 kA at 250 V DC conforming to IEC 60947-2 2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2 7.5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Suitability for Isolation | Yes conforming to IEC 60947-2 |
| Utilisation Category | Category A |
| Trip Unit Name | TM-D |
| Trip Unit Technology | Thermal-magnetic |
| Trip Unit Rating | 50 A at 50 °C |
| Protection Type | Overload protection, Short-circuit protection |
| Pollution Degree | 3 conforming to IEC 60664-1 3 conforming to IEC 947-1 |
| Complementary | |
| Control Type | Toggle |
| Mounting Mode | Fixed |
| Mounting Support | Backplate |
| Upside Connection | Front |
| Downside Connection | Front |
| Mechanical Durability | 13000 cycles |
| Electrical Durability | Category A: 4000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Connection Pitch | 25 mm |
| Local Signalling | Positive contact indication |
| Neutral Protection Setting | Without protection |
| Earth-leakage Protection | Without |
| Height | 130 mm |
| Width | 75 mm |
| Depth | 60 mm |
| Environment | |
| Standards | GB/T 14048.2 EN/IEC 60947-2 JIS C8201-2-2 EN/IEC 60947-1 |
| IP Degree of Protection | IP20 conforming to IEC 60529 |
| IK Degree of Protection | IK07 conforming to IEC 62262 |
| Ambient Air Temperature for Operation | -25…70 °C |
| Ambient Air Temperature for Storage | -35…85 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.2 cm |
| Package 1 Width | 9.4 cm |
| Package 1 Length | 14.0 cm |
| Package 1 Weight | 764.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 9.483 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 192 |
| Package 3 Height | 77.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 60.0 cm |
| Package 3 Weight | 160.228 kg |
| Contractual Warranty | 18 months |
