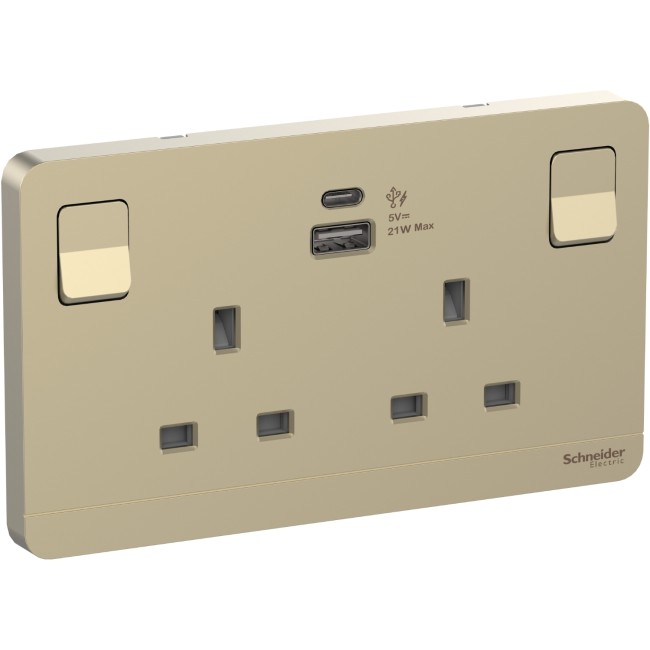

Schneider AvatarOn switched socket with USB charger 21W type A C 2 gang 13A wine gold E83T25ACUSB_WG_G12
Schneider AvatarOn switched socket with USB charger 21W type A+C 2 gang 13A wine gold
Model :E83T25ACUSB_WG_G12
SKU :E83T25ACUSB_WG_G12
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider AvatarOn switched socket with USB charger 21W type A C 2 gang 13A wine gold E83T25ACUSB_WG_G12
Schneider AvatarOn switched socket with USB charger 21W type A+C 2 gang 13A wine gold E83T25ACUSB_WG_G12
Specifications
| Range | AvatarOn |
|---|---|
| Product or component type | Switched socket with USB charger |
| device presentation | Complete mechanism |
| Socket additional information | Shuttered |
| Load type | No inductive load |
| Device mounting | Flush 47 mm |
|---|---|
| Switch function | ON/OFF power-socket outlet |
| Number of power socket outlets | 2 x 2 x 2P + E with shutters, British |
| Rated current | Power circuit: 13 A 240 V, AC, 50 Hz |
| Surface finish | Glossy |
| Surface treatment | Painted |
| Number of gangs | 2 gangs |
| Connector type | USB type A USB type C |
| [Ue] rated operational voltage | 240 V AC 50 Hz |
| Power consumption in W | 21 W |
| Input power | 30 W |
| Integrated connection type | 2 USB port 5 V DC, maximum load current: 3.1 A |
| Material | PC (polycarbonate) 2407 Bayer: grid plate |
| Protection type | USB port: over temperature protection with PWM IC circuit |
| Shape of screw head | Cross |
| Screwdriver shape | Philips |
| Electrical connection | 3 screw terminal |
| Clamping connection capacity | 1 x 4 mm² for solid cable(s) |
| Wire stripping length | 10…12 mm |
| Mounting support | Mounting box conforming to BS 4662 |
| Fixing mode | By screws M3.5 x 25 mm |
| Fixing center | 120.6 mm |
| Height | 147 mm |
| Width | 87 mm |
| Depth | 32 mm |
| Embedding depth | 24 mm |
| Net weight | 0.2 kg |
| Operating altitude | <= 2000 m |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -5…60 °C |
| Relative humidity | 0…95 % |
| Standards | BS 1363-2 |
| Product certifications | IEC |
| IP degree of protection | IP20 |
